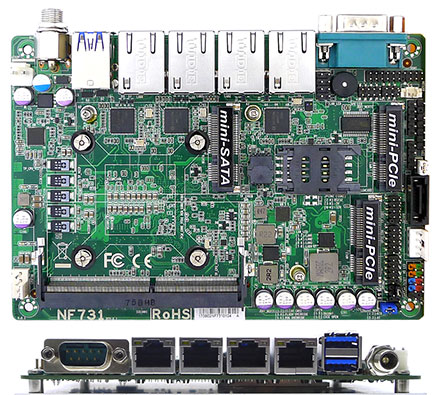

Jetway NF731V-3955U (Intel Kabylake)

Jetway NF731V-3955U (Intel Kabylake)
  • KabyLake !
  • 4x LAN !
  • 3,5" SBC !

  • Intel® Skylake/Kabylake U-series Processor (TDP 15W). Default is 3855U/3955U
  • 1 * 260-pin Dual-channel DDR4 2133MHz SODIMM Up to 16 G
  • 3* Intel i225V 2.5GbE, 1* Intel i219LM GbE
  • Support Intel AES NI and TPM (option) to secure customers data
  • 1 * RS232 Console, 2 * USB3.0 & 3 * USB2.0, 1 * HDMI
  • 2* Mini PCIe Slots (1* full size & 1* half size), 1 * SIM card holder
  • 12V DC-in power





Share

329.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Model – JNF731V-3955U (Default)
– JNF731V-3965U
Form Factor – 3.5” (5.8-in * 4.0-in, 148 * 102mm)
Processor System – Intel® Skylake/Kabylake U-series Processor (TDP 15W)
– AMI Flash ROM BIOS
Memory – 1* DDR4 2133MHz SO-DIMM up to 16GB
Storage – 1* SATAIII (6 Gb/s)
– 1* mSATA (SATA/USB signal)
Expansion – 1* Full size Mini-PCIe
– 1* Half size Mini-PCIe
– 1* SIM card holder
Ethernet – 3* Intel i225V 2.5GbE
– 1* Intel i219LM GbE
Graphics – Intel® HD Graphics, shared memory
– 1* HDMI 1.4 (Max Resolution: 4096×2304@24Hz)
Internal I/O – 3* USB2.0
– 1* SATAIII
– 1 * 32GB eMMC (option)
(If use Win 10 OS, we recommend the eMMC is use for OS boot up purpose.)
– 1* PS/2
– 1* HDMI
– 1* RS232/422/485
– 1* Chassis intrusion
– 1* GPIO
– 1* SMBUS
– 1* AT mode
– 1* TPM (on board option)
External I/O Rear:
-2* USB3.0
-1* COM
-4* RJ45
-12V DC-in
Power 12V DC-in PWR
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
Compliance – CE, FCC, RoHS, REACH
OS Support – Windows, Linux
