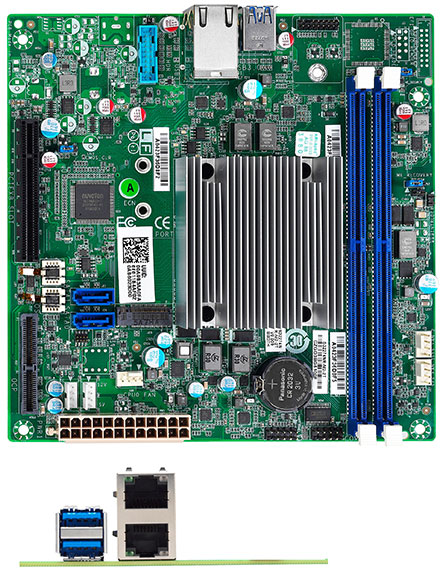

TYAN S3227 (S32272NR-C538) [Intel Atom C3538 4x 2.1Ghz, 2x LAN]

PRODUCT IS CURRENTLY NOT AVAILABLE !
TYAN S3227 (S32272NR-C538) [Intel Atom C3538 4x 2.1Ghz, 2x LAN]

  • Single Intel® Atom Denverton processor C3000 Series SoC
  • 2x DIMM slots support up to 32GB/64GB UDIMM/RDIMM ECC DDR4 2400/2133, or 1x DIMM slot support up to 16GB/ 32GB UDIMM/ RDIMM ECC DDR4 1866
  • 1x PCI-E Gen3 x8 slot (w/ x8 link or x2 link)*Low-pro˙le supported only
  • 1x SFI connector or w/M3227L8-X557-2C (-2T-C958 SKU only)
  • 1x M.2 connector (2242/2260), 2x SATA HDDs by SATA-III connectors running at 6.0Gb/s (RAID Non-support)
  • 2x GbE (via Realtek RTL8111H) or 2x 10GbE (from M3227L8-X557-2C TYAN Mezz Card) + 2x GbE (via Realtek RTL8111H) (-2T-C958 SKU)
  • Mini-ITX 6.69" x 6.69" (170 x 170mm)


Share

439.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Add to cart
TYAN S3227 (S32272NR-C858) Specifications
ProcessorSupported CPU Series(1) Intel Atom Denverton processor C3858 SoC
Thermal Design Power (TDP) wattage25W
Chipset Super I/ONCT6683D-T
MemorySupported DIMM Qty(2) DIMM slots
DIMM Type / SpeedUDIMM/RDIMM ECC DDR4 2400
CapacityUp to 32GB/64GB UDIMM/RDIMM
Memory voltage1.2V
Expansion SlotsPCI-E(1) PCI-E Gen3 x8 slot / *Low-profile supported only
Others:(1) SFI connector
LANPort Q'ty(2) GbE ports
ControllerRealtek RTL8111H
StorageSATAConnector(2) SATA
ControllerIntel Atom Denverton processor C3858 SoC CPU
Speed6.0 Gb/s
RAIDNon-support
M.2 connector(1) M.2 connector (2242/2260) by PCI-E interface
Input /OutputUSB(2) USB3.0 ports (via cable) / (2) USB3.0 ports (at rear)
COM(1) header
RJ-45(2) GbE ports
Front Panel(1) 2 x 5 header
SATA(2) SATA-III connectors
PowerSSI/ATX 24-pin + 4-pin power connectors
System MonitoringChipsetNCT6683D-T
FanTotal (3) 4-pin headers
TemperatureMonitors temperature for CPU & system environment / Monitors temperature for CPU & memory & system environment
VoltageMonitors voltage for CPU, memory, chipset & power supply
LEDFan fail LED indicator / Over temperature warning indicator
OthersWatchdog timer support
BIOSBrand / ROM sizeAMI / 16MB
FeatureACPI 3.0/ACPI sleeping states S4,S5 / SMBIOS 2.8/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection
Physical DimensionForm Factormini-ITX
Board Dimension6.69" x 6.69" (170 x 170mm)
RegulationFCC (DoC)Class B
CE (DoC)Class A
Operating Environment Operating Temp.10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity90%, non-condensing at 35° C
RoHSRoHS 6/6 CompliantYes
Operating SystemOS supported listPlease refer to our AVL support lists.
Package ContainsMotherboard(1) S3227 Motherboard
Manual(1) Quick Installation Guide
Installation CD(1) TYAN installation CD
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
