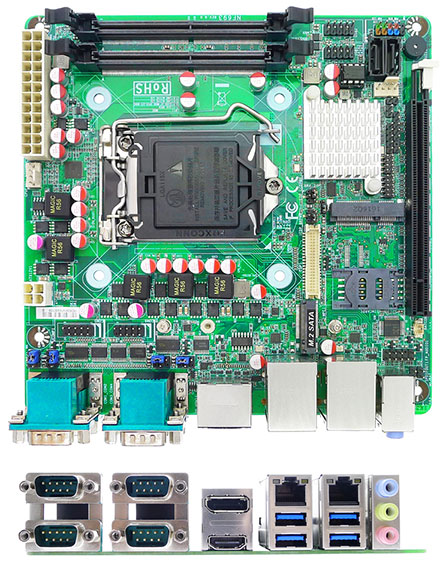

Jetway NF693-H110 (Intel H110 Skylake)

Jetway NF693-H110 (Intel H110 Skylake)

  • Intel® LGA1151 Socket Core i3, i5, i7 & Pentium Processors (max. 65W)
  • Intel® H110 Express Chipset
  • Support Dual Channel DDR4 2133MHz, 2 * SO-DIMM slot, up to 32GB memory
  • Realtek ALC662 6-Channel HD Audio
  • 2 * Realtek Giga LAN
  • Support 2 * SATA 3.0 (6Gb/s), 1 * mPCIe/mSATA and 1 * M.2 M key-2242, 2260
  • Support HDMI/DP/eDP, dual displays
  • 4 * External RS232 and 2 * internal COM (COM1 supports RS232/422/485)
  • 4 * External USB3.0 & 4 * Internal USB1.1/2.0
  • 1 * PCIe x16 slot
  • 1 * SIM Card Holder


Share

229.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Form Factor
Dimensions - Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
 Processor System
CPU - Intel LGA 1151 Socket Core i7 / i5 / i3 & Pentium Processors
Core Number - (By CPU)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - Intel H110 Chipset
BIOS - AMI 64Mb Flash ROM
 Expansion Slot
Mini-PCIe - 1 (full size, co-lay with mSATA)
mSATA - 1 (full size, co-lay with mini-PCIe)
M.2 - 1 (M key-2242, 2260)
PCIe - 1 * PCIe x16
SIM card holder - 1
 Memory
Technology - Dual Channel DDR4 2133MHz
Max. - 32GB
Socket - 2 * SO-DIMM
 Graphics
Controller - Intel® Gen9 Graphics supports DX 11/12, OGL4.3 / 4.4
VRAM - Shared Memory
VGA - 0
DVI-D - 0
HDMI - 1 (Max. Resolution : 3840*2160@24Hz)
DP - 1 (Max. Resolution : 4096*2304@60Hz)
eDP - 1 (Max. Resolution : 4096*2304@60Hz)
MultiDisplay - Dual Display
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - PCIe GbE LAN : Realtek RTL8111G
Connector - 2 * RJ 45
Audio
CODEC - HD Audio : Realtek ALC662
Channel - 6 Channel
 SATA
Max Data Transfer Rate - 2 * SATAIII (6.0Gb/s), 1 * mini-SATA III and 1 * M.2
RAID - No
 Rear I/O
VGA - 0
DP - 1
HDMI - 1
Ethernet - 2
USB - 4 * USB 3.0
Audio - 3 (Line-In, Line-Out, MIC)
Serial - 4 (COM1 support RS232/422/485 )
LED - 0
DC-input - 0
 Internal Connector
HDMI - 0
USB - 4 * USB 2.0
eDP - 1
Serial - 2 (COM5 is optional to support RS232/422/485)
SATA - 2
mPCIe - 1 (full size, co-lay with mSATA)
mSATA - 1 (full size, co-lay with mPCIe)
M.2 - 1 (M key-2242, 2260)
SIM card holder - 1
Chassis intrusion - 1
PS/2 - 1
GPIO - 1 (8 bit programmable inputs/outputs)
SMBUS/ I2C - 1
Audio Header - 1
TPM - 1 (onboard option)
AT mode - 1
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments (10sec ~ 255min)
 Power Requirements
Input PWR - 24 pin/4 pin ATX PWR Connector
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0°C – 60°C
- Storage: -20°C – 85°C
Data sheet Download (PDF)
