CTFHD700-SH - HDMI 7" TFT - Touchscreen USB - Video - Autodimmer - Audio (800nits) -TRANSFLECTIVE PRO-

PRODUCT IS CURRENTLY NOT AVAILABLE !
CTFHD700-<b>SH</b> - HDMI 7" TFT - Touchscreen USB - Video - Autodimmer - Audio (<b>800nits</b>) <b>-TRANSFLECTIVE PRO-</b>
3D 360° View
  • High brightness !
  • One-cable-4-all !
  • TRANSFLECTIVE !
  • 800 nits !

New ! With special sunlight readable transflective TFT and Anti-Glare surface!

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the re
[more]

Share

999.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Add to cart
Compare
Front
Rear
Side
LCD Size 7"
Aspect Ratio 16:9
VGA resolutions 640x480-1920x1200
Native resolution 800x480
Dot resolution 2400x480
Brightness 800
VGA Input HDMI
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA (Stereo)
Touchscreen USB
Case color black
Power Input 12/24VDC
Power Consumption 9W
Case size 184 x 129 x 32 mm
Visible area 154 x 93 mm
Certificates CE, E1
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
no Headrest mount
yes TS pencil
yes Earphone
yes Adjustable video aspect
yes Mirrorable video
yes Reverse camera input

New ! With special sunlight readable transflective TFT and Anti-Glare surface!

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the readability is still ensured by a transmissive backlight.

The CTFHD700-SH delivers an impressive 800 cd/m2 light output – a light level that places it at the very top end of the market in terms of brightness. This light output is achieved with no increase in power consumption over previous models. The model is an active matrix transmissive TFT that offer robust industrial quality and performance with a wide operating temperature range of -30°C to 80°C.

The new CTFHD-700-SH TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant HDMI-display ensures a maximum readability and sharpness.

The device has integrated Stereo-speakers, a rear camera input and the dimmer button in the front will enable perfect viewing pleasure also during the night.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTFHD-700-SH can be used with any PC/MAC with HDMI- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..





Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz


CTF700-SH display in MAN TGX
Sunlight-readable-test with CTF700-SH in Death Valley (USA)

Spezifications
Screen size 7" digital
Touchscreen Resistive (also available without Touchscreen or with capacitive Multi-Touschreen)
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1200 (also eg. 1366x768)
Color configuration RGB stripe
Power input DC 11-24V
Power consumption max. 8W
Video system 3x Video inputs (PAL/NTSC)
1x HDMI input
Dimensions Display Case : 184x129x32 mm
Display : 154 x 93 mm
Video input signal 1.0Vp-p, composite video
Brightness 800 cd/m²
Contrast 500:1
Vibration IEC68-2-6
Operating Temperature -30° to 80°C
Features Full function OSD control (englisch)
Built-in Stereo-speakers
Earphone-Output (rear side)
Automatic switching to rear camera (by signal detection on AV3)
Auto Power On/Off
Touchscreen-pencil integrated in rear enclosure
Autodimmer

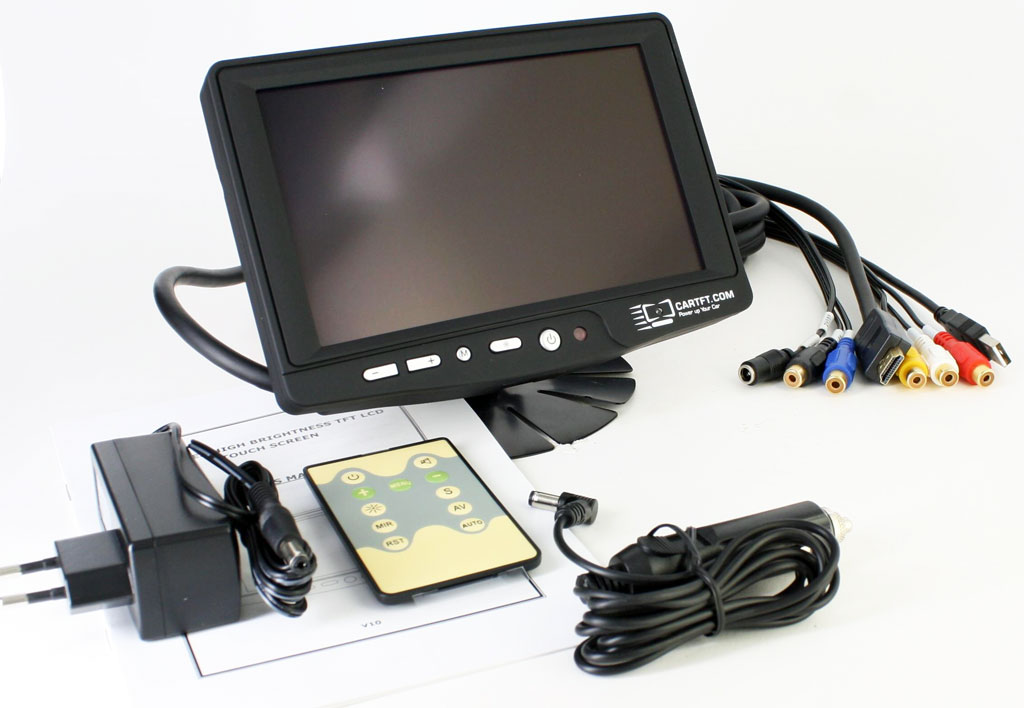

What is included ? - 7" HDMI Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash mounting bracket
- Touchscreen pencil
- HDMI/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
