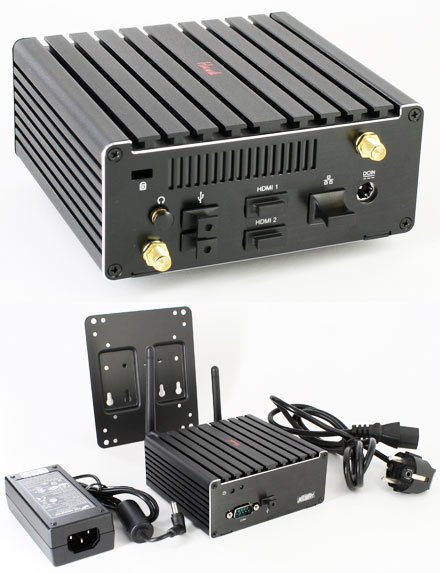

Jetway HBJC310U91Z-2930-B (Intel Bay Trail-M)

PRODUCT IS CURRENTLY NOT AVAILABLE !

  • INTEL® Bay Trail-M N2930 SoC Processor
  • Support 1 * SO-DIMM slot (Max to 4GB)
  • Support 1 * 2.5 SATA HDD
  • 1 *full size Mini PCI-E slot for m-SATA Device
  • 1 * half size Mini PCI-E slot
  • Support USB3.0
  • Supports 1*Gigabit LAN
  • Support CPU Smart FAN


Share

999.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Add to cart
Dimension (W*D*H) 116 * 110 * 65  mm (With 2.5” HDD Module)
Construction Aluminum housing
Colors Black / HBJC310U91-2930-B, HBJC310U91W-2930-B Sliver / HBJC310U91-2930-S, HBJC310U91W-2930-S
MB model JNU91-2930
CPU INTEL® Bay Trail-M N2930 SoC Processor (1.83GHz, 7.5W TDP)
BIOS AMI UEFI
Memory 1 * SO-DIMM slot (Max to 4GB)
Storage Space 1 *full size Mini PCI-E slot for m-SATA Device 1 * 2.5 SATA HDD ( optional)
Display Interface 2 * HDMI
Network 1 * RJ45 (Giga LAN) WiFi (HBJC310U91W-2930-B & HBJC310U91W-2930-S only)
Audio 1 * Line out
Front I/O Port 1 * USB 3.0 1 * COM
Rear I/O Port 2 * USB 2.0, 2 * HDMI, 1 * GigaLAN, 1 * Line out, 1 * 12V DC-in
Expansion Slot 1 * half size Mini PCI-E slot
Power Source DC-12V Jack input Adapter : AC_90~240V / DC_12V_3A/36W
Certification EMC : CE , FCC Safety : RoHS , ErP
Environment Operating Temperature : 0 ~ 35℃ Storage Temperature : 0 ~ 60℃ Vibration During Operation : N/A Shock During Operation : N/A
Mounting Wall mounting Kits
Packing Net Weight:0.9KG Gross Weight:1.6KG Color Box Dimension:180(W) x 190(D) x 92(H) mm
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
