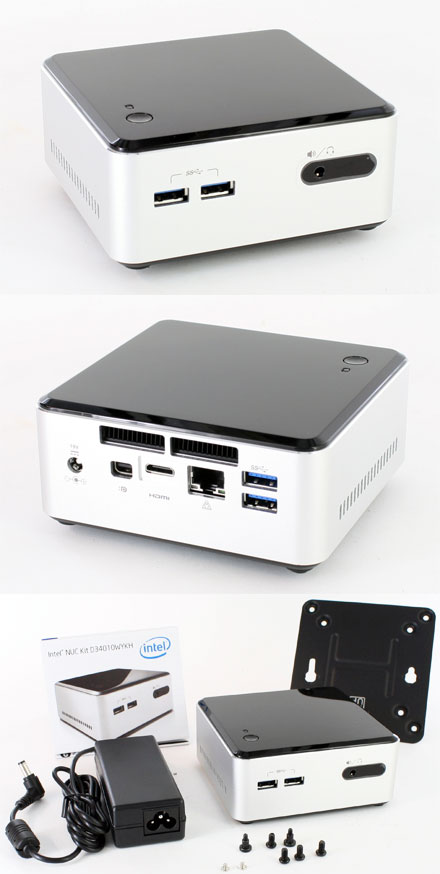

Intel D34010WYKH NUC (Intel Core i3-4010U CPU 2x 1.7Ghz, 1x HDMI, 1x dP, 2x Mini-PCIe, 2.5" HDD/SSD support)

PRODUCT IS CURRENTLY NOT AVAILABLE !

Because of its size (116.6 x 112 x 49.5mm !) the system is perfect for these applications :
- POS
- Digital Signage
- Kiosk

Or use as attractive office-computer or server.

For a full PC you need in addition :
- SO-DDR-III RAM (Low Voltage, 1.35V)
- 1x 2.5" HDD/SSD or1x mSATA SSD

Features :
- Intel QM87
- CPU: Intel Core i3-40100U, 2x 1.70GHz, 3MB Cache, 15W TDP
- RAM: 2x DDR3 SO-DIMM (dual PC3-12800S DDR3)
- 1x PCIe Mini Card (full-size)
- 1x PCIe Mini Card (half-size)
- 1x 2.5" HDD/SSD
- Intel HD Graphics 4400 (IGP)
- 1x Mini HDMI 1.4a, 1x Mini Display
[more]

Share

298.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Add to cart

Because of its size (116.6 x 112 x 49.5mm !) the system is perfect for these applications :
- POS
- Digital Signage
- Kiosk

Or use as attractive office-computer or server.

For a full PC you need in addition :
- SO-DDR-III RAM (Low Voltage, 1.35V)
- 1x 2.5" HDD/SSD or1x mSATA SSD

Features :
- Intel QM87
- CPU: Intel Core i3-40100U, 2x 1.70GHz, 3MB Cache, 15W TDP
- RAM: 2x DDR3 SO-DIMM (dual PC3-12800S DDR3)
- 1x PCIe Mini Card (full-size)
- 1x PCIe Mini Card (half-size)
- 1x 2.5" HDD/SSD
- Intel HD Graphics 4400 (IGP)
- 1x Mini HDMI 1.4a, 1x Mini DisplayPort 1.2
- 4x USB 3.0, 1x Gb LAN
- Power supply: 65W, external
- Dimensions (WxHxD): 116.6x112x49.5mm

Dimensions / Weight 116.6 x 112 x 49.5 mm
CPU Intel Core i3-40100U (Integrated)
1.7Ghz, Dual Core, 3MB Smart Cache
Supports Intel 64 architecture
Chipset / FSB Intel QM87 Express
RAM 2x SO-DDR-3 RAM (up to 16GB 800/1066) [1.35V !]
Audio Intel® High Definitio Audio (Intel HD Audio) via Mini HDMI 1.4a and Mini DisplayPort 1.2 outputs supporting 8 channel (7.1) digital audio
Graphics Intel HD Graphics 4400
One Mini DisplayPort* 1.2 supporting ultra-high definition
4K displays and multiple monitor functionality
One Mini HDMI* 1.4a port
Expansion - 2x Mini-PCIe (1x Half-size, 1x Full-length with mSATA support)
- 2x Internal USB2.0
- 1x Internal SATA port (6 Gb/s)
OS Support Windows 7, Windows 8, Linux
Front I/O 2 x USB3.0
1x Microphone/Headphone jack
Drive bays 1 x Mini-PCIe mSATA, 1x 2.5" HDD/SSD (SATA)
Rear I/O 1 x DC JACK for DC12-19V single power input
1x mini HDMI 1.4a
1x mini DisplayPort 1.2
1x RJ-45 GbE port
2x USB 3.0
Scope of supply - Intel D34010WYKH barebone with VESA mounting adapter
- AC/DC Adapter (power cord not included)
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
