Jetway JBC371F35W-T40E-B (AMD Hudson M1)

PRODUCT IS CURRENTLY NOT AVAILABLE !

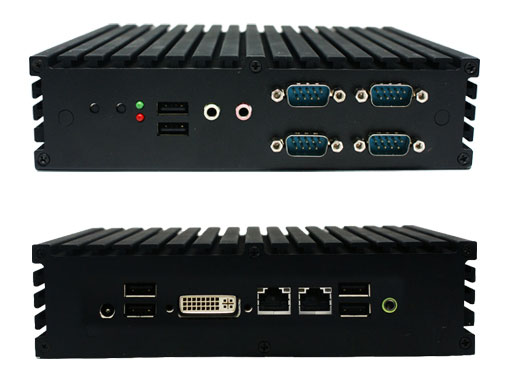

Jetway JBC371F35W-T40E-B (AMD Hudson M1)

  • AMD G-Series APU + Hudson M1 Chipset
  • Support AMD eOntario (G-Series) T40E 1.0GHz Dual core APU (TDP is 6.4W)
  • Support DirectX 11 3D Graphics Acceleration
  • Support 2 * Gigabit LAN
  • Support DVI-I Output
  • Equipped with 802.11 b/g/n WiFi card & Internal Antenna (JBC371F35W-T40E-B only)
  • Support 2.5" SATA HDD
  • Support 4 * COM ports
  • Support Mini PCI-E socket (selectable with mSATA)
  • Support CF card socket
  • Provides Wall mount bracket & VESA mount (option).


Share

269.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Add to cart
Model No:     JBC371F35-T40E-B / JBC371F35W-T40E-B
Motherboard Specification
CPU AMD eOntario (G-Series) Dual core T40E 1.0GHz APU
Chipset AMD Brazos G-Series APU + Hudson M1 Chipset
Memory 1 * SODIMM Sockets for un-buffered Single Channel 64-bit DDR3 800-1066 SDRAM up to 4 GB
Expansion Slots 1 * Mini PCI-E
LAN 2 * Realtek RTL8111EVL PCI-E Gigabit Ethernet LAN
Audio Realtek ALC 662 HD Audio CODEC with 4-Channel
Storage 2 * Serial ATA3 6Gb/s connectors
1 * CF card socket
1 * mSATA (selectable with Mini PCI-E)
BIOS AMI EFI 16MB SMT Flash ROM
Form Factor 3.5” SBC (148mm x 102mm)
Barebones Specification
Product size 180 (W) *142 (D) * 48 (H) mm
Specs Devices 1 x 2.5”HDD Drive Bay (Only support SATA 2.5”HDD)
Colors Black
Front I/O Port 1 * Power button & 1 * Reset button
1 * Line-OUT & 1 * MIC jack
2 * USB 2.0 ports
4 * COM ports
2 * Antenna holes
Rear I/O Port 4 * USB 2.0 ports
1 * 12V DC jack
2 * RJ-45 port (Gigabit LAN)
1 * Line-out port and 1 * DVI-I port
2 * Antenna holes
1 * VGA port Reserved
Power supply +12V DC-IN Power
Accessory 60W AC-DC Adapter * 1 & Power Cord * 1
CD * 1 & Manual * 1
DVI-I to CRT Converter * 1
WI-FI antenna * 1(JBC371F35W –T40E-B only
Wall Mount Bracket * 2 & VESA Mount Bracket (option) x 1
Application Kiosk, Digital Signage, Gaming machine, Set Top Box, Thin Client, Car PC Application,  Factory Automation & Embedded Fanless application
Packing Color Box Dimension:417(W) * 137(D) * 296(H)mm
Gross Weight:2.6KG
Net Weight:2.1KG
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
