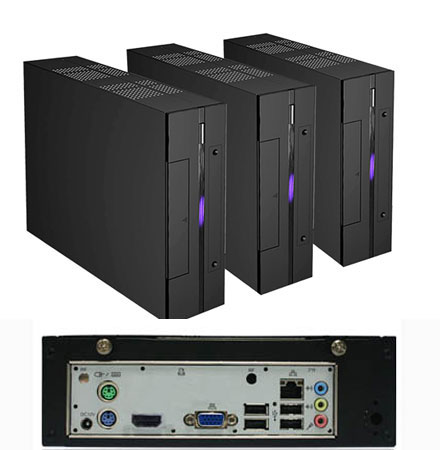

Jetway JBC200C9K-2500-B (Intel Cedar Trail-D)

PRODUCT IS CURRENTLY NOT AVAILABLE !

INTEL® Cedar Trail-D Processor D2500 + NM10 Chipset
Support 2 * DDR3 800/1067MHz Single CH up to 4GB
Support 2 * Serial ATAII (3Gb/s) Devices
Integrated Realtek ALC662 HD Audio CODEC with 6-CH
Supports 1 * Realtek RT8111EVL Gigabit LAN
Support Watch dog Technology
Support CPU Smart FAN
Compliance with ErP standard
Small size and Easy to use

Product Accessories
- AC Adapter + power cord
- Manual
- CD
- 1x SATA cable

198.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Model No:	JBC200C9K-2500-B
Motherboard Specification
CPU	INTEL® Cedar Trail-D Processor D2500 CPU (1.86GHz)
Chipset	INTEL®NM10 Express chipset
Memory	2 * DDR3 1067MHz Single CH SO-DIMM up to 4GB
LAN	1 * RTL8111EVL PCI-E Gigabit LAN
Audio	Realtek ALC662 6-Channel HD Audio
Storage	2 * Serial ATA2 3Gb/s connectors
USB	Embedded 8 * USB 2.0/1.1
BIOS	AMI 16MB DIP Flash ROM
Form Factor	Mini-ITX Form Factor, M/B 170 x 170mm
Barebones Specification
Product size	210(W) x 258(D) x 65(H)mm
Specs Exposed	1 x Slim ODD Drive Bay and 1 x 2.5” HDD Drive Bay (Only support SATA 2.5” HDD)
Colors	Black Color
Cooling Fan	Side: 6cm Fan SLEEVE x 1
Front I/O Port	2 x USB(V2.0) 1 * Power button and 1 * HDD LED
Rear I/O Port	4 * USB 2.0/1.1 ports 1 * PS2 KB/MS port 1* RJ-45 ports 1 * Audio I/O port ( Line-in, MIC and Line-out ) 1 * VGA & HDMI port
Power supply	12V DC in
Standard Accessory	60W AC-DC Adapter x1 and Power Cord x1 Stand x 4 and SATA cable x 1
Functional	Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK
Packing	Color Box Dimension：417(W) x 137(D) x 296(H)mm Gross Weight：3.65KG Net Weight：3.02KG
Certificate	CE,FCC For Barebones CE,FCC,TUV,UL,CCC,CB For Power Adapter

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (Rackmount)	Download (PDF)
Jetway Catalog (Barebones)	Download (PDF)
