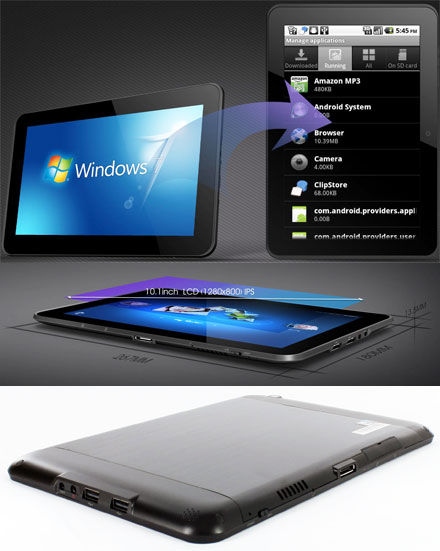

CTFPAD-2 (10.1" Multi-Touchscreen, Intel Atom Z670 1.5Ghz, 2GB RAM, 32GB SSD, HSPA/UMTS, WLAN, GPS) [without OS] *new*

PRODUCT IS CURRENTLY NOT AVAILABLE !
CTFPAD-2 (10.1" Multi-Touchscreen, Intel Atom Z670 1.5Ghz, 2GB RAM, 32GB SSD, HSPA/UMTS, WLAN, GPS) [without OS] *new*
3D 360° View
  • HSPA/UMTS !
  • Android+Win7 support !
  • WLAN ! GPS !
  • Intel Atom Z670 CPU !

Device comes without pre-installed operating system !
You can install your own Windows 7 copy (Home/Pro/Ultima) by USB-CD-drive or USB stick.
Alternatively you can install our Android-Image V2.3. It is already prepared for Dual-Boot with Windows 7.

With the CTFPAD you get a real generalist with full Windows 7 and Android compability. This UMPC does not only enable you to use any Windows-compatible software, but also gives Internet access through WLAN or HSDPA 3G.

The optionally available Docking-Station exten
[more]

Share

549.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Add to cart

Device comes without pre-installed operating system !
You can install your own Windows 7 copy (Home/Pro/Ultima) by USB-CD-drive or USB stick.
Alternatively you can install our Android-Image V2.3. It is already prepared for Dual-Boot with Windows 7.

With the CTFPAD you get a real generalist with full Windows 7 and Android compability. This UMPC does not only enable you to use any Windows-compatible software, but also gives Internet access through WLAN or HSDPA 3G.

The optionally available Docking-Station extends the pad by these ports:
- 2x USB
- 1x LAN RJ45
- 1x Audio port
- 1x DC-In
- 1x HDMI

Input possibilities :
- Touchscreen (Multi-Touch)

Ultra Portable
- 800 gramms
- Dimensions : 26,6 x 18 x 1,35cm

Long battery life
- 4,5 hours

Communication
- Wireless LAN (300Mbit)
- HSPA/UMTS 3G
- GPS

Space wonder
- 32 GB SSD !
- SD/SDHC Card Rearder (up to 32GB)

Additional features
- Windows 7, Android & MeeGo compatible
- Super-fine resolution 1280x800 (IPS Panel)
- Smoothly HD 1080p movie playback possible
- Integrated Webcam (Front+Rear), microphone & speakers
- SD card slot (SDHC)
- Motion sensor (G-sensor)
- Light-Sensor, Gyroscope, Electronic compass
- Docking Station (optional)


CPU Intel Atom Z670 1.5Ghz (Oak Trail)
Storage 32GB mSSD Mini-PCIe (integrated)
Memory 2GB DDR-II (integrated)
Graphics & Chipset Intel SM35 Express Chipset
Intel GMA 600
Display 10.1" Capacitive Multi-Touch screen TFT LCD (IPS)
1280x800 Native resolution
Camera Integriert (Front 1.3M, Rear 3.2M)
WLAN 802.11b/g/n (integrated)
Motion-Sensor integrated
GPS Integriert (SiRFstarIV chipset)
WWAN HSPA/UMTS 3G (integrated)
850/900/1900/2100Mhz
Ericsson F3307
HSUPA: 5,76Mbps (UL) / HSDPA: 7,2Mbps (DL)
I/O Ports 2x USB 2.0
1x DC-In (19V)
1x Docking-Station (40pin)
1x SIM card port
1x Audio-Output
Battery Li-Polymer (10.8V/2890AmH/32Wh), 4,5 hrs
Size 266(W) x 180(H) x 13,5(T) mm
Weight 800g (with battery)
Accessoiry (in scope of supply) Battery (integrated in the pad)
AC Strom-adapter
Data sheet Download (PDF)
Data sheet Print view
Android Image V2.3 Download
Windows 7 Drivers Download
Windows 7 Installation [DE] Download
Windows 7 Installation [EN] Download
Touchscreen Firmware V1.6 Download
3G Modem Win8 Driver Download
