BACK : VGA Touchscreen (Premium)

MH700 - VGA 7" TFT - Touchscreen USB - Autodimmer - IR Remote - Audio (600nits , Full metal enclosure)
Stock situation : in stock

High brightness ! One-cable-4-all ! Full metal case ! 600 nits !       Data sheet      Print view		. 398.00 EUR . incl.19% VAT    plus shipping

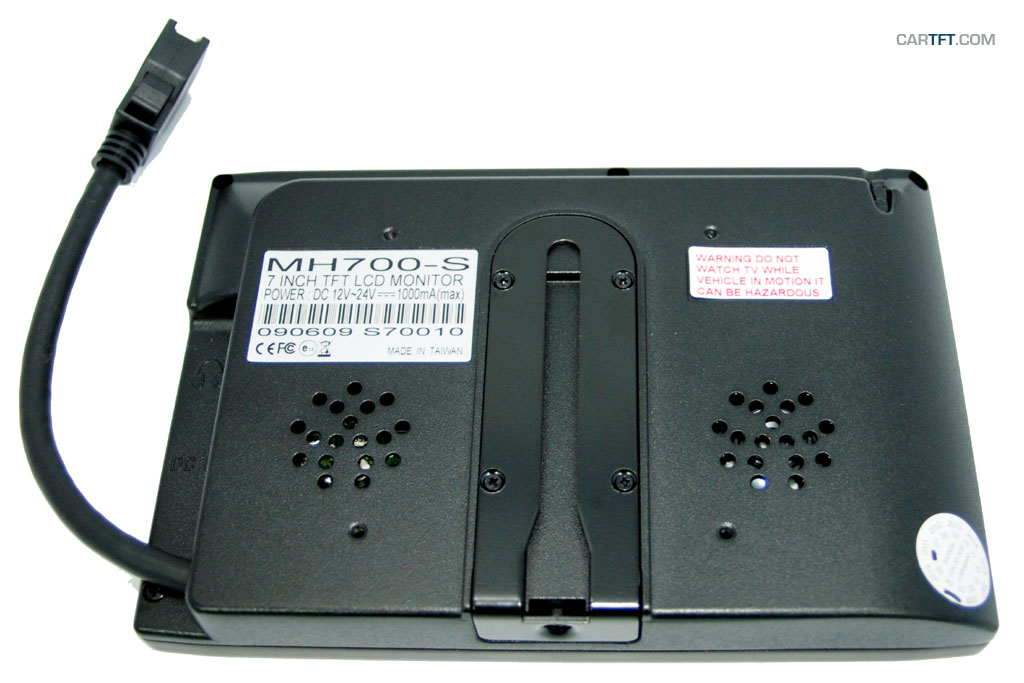

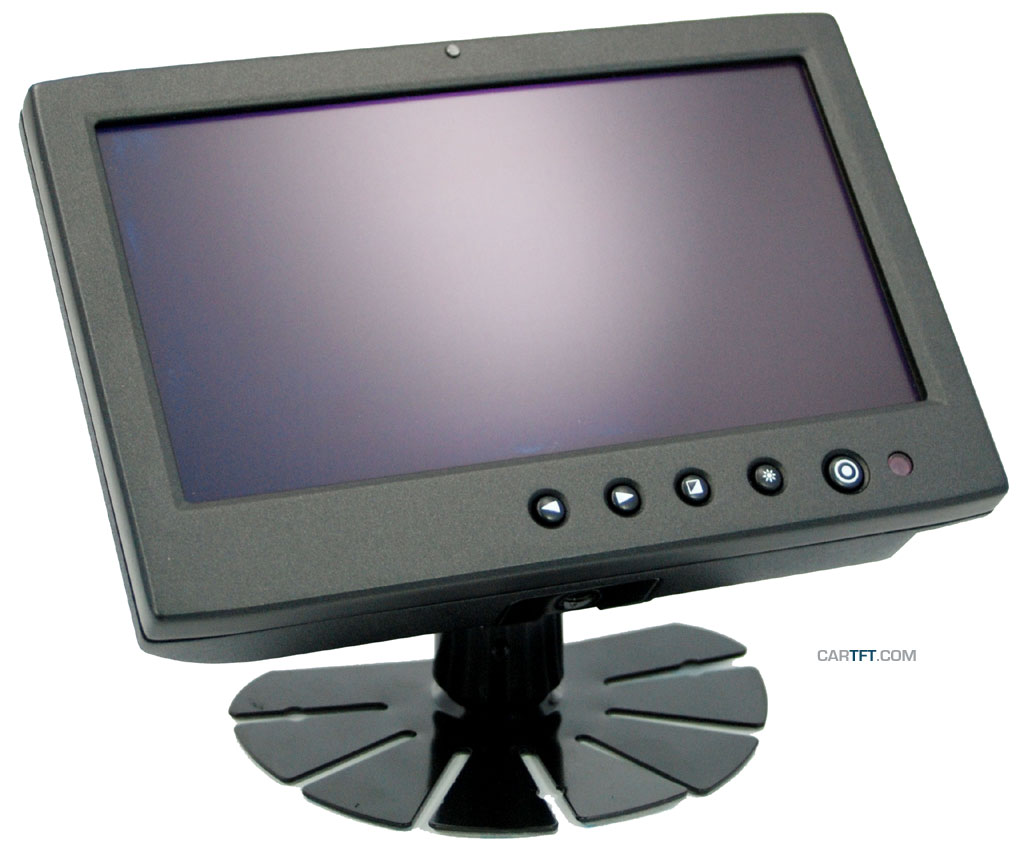

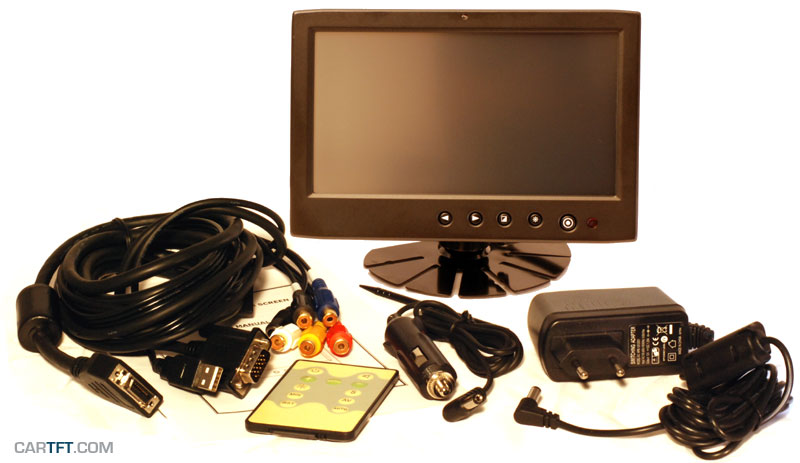

MH700 - VGA 7" TFT - Touchscreen USB - Autodimmer - IR Remote - Audio (600nits , Full metal enclosure) Front view Rear view Complete view LCD Size Aspect ratio Height to Width Capable PC-VGA resolutions Physical TFT resolution (=native resolution) Amount of showable pixel modes (RGB(=3)x native resolution) Maximum backlight in nits or cd/m² VGA connector Amount of video inputs and standard Amount of audio inputs Touchscreen connector Color of display housing Power input range (12VDC=car, 24VDC=lorry) Power consumption Housing dimensions Visible LCD area Certifications Weight (only display) Adjustable LCD backlight Display can turn on/off automatically, depending on signal status Picture-in-picture capability Infrared remote control unit for display Incl. headrest mounting unit Incl. touchscreen control pencil Earphone output Adjustable aspect ratio in video mode (4:3 or 16:9) Mirrorable video picture (video-mode) Input for rear camera Displays are tested for dead pixels prior to shipping. .TFT-Display Front Rear Full .Specifications LCD Size 7" Aspect Ratio 16:9 VGA Resolutions 640x480-1024x768 Physikal resolution 800x480 Dot resolution 2400x480 Brightness 600 VGA Input D-SUB 15 Video Input 3x PAL/NTSC (RCA) Audio Input 2x RCA (Stereo) Touchscreen USB Case color black Power Input 12-24VDC Power Consumption 9W Case size 182 x 120 x 30 mm Visible area 158 x 85 mm Certificates CE, E1 Weight 0 Bauform On-Dash Warranty months 24 .Features Adjustable backlight Auto Power-On Picture In Picture IR Remote Headrest mount TS pencil Earphone Adjustable video aspect Mirrorable video Reverse camera input Additional informations : The MH700 delivers an impressive 600 cd/m2 light output – a light level that places it at the very top end of the market in terms of brightness. This light output is achieved with no increase in power consumption over previous models. The model is fully wrapped into a metal enclosure, the temperature range is -35°C to 85°C. The contrast ratio is 650:1. The new MH700 TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness. The device has integrated Stereo-speakers, a rear camera input and the dimmer button in the front will enable perfect viewing pleasure also during the night. On the rear side there is a touchscreen pencil integrated. AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable. The MH700 can be used with any PC/MAC with VGA- and USB port. Driver-CD included, compatible with : - Windows 95/98/ME/NT4/2000/XP - XP Tablet PC Edition - Windows CE 2.12, 3.0, .net - Linux RedHat,Mandrake,.. - Macintosh OS 9.x, 10.x - DOS,.. Spezifications Screen size 7" digital Aspect Ratio 16:9 wide TFT screen Dot Resolution 2400x480= 1,152,000 dots Physical Resolution 800x480 Supported Resolutions 640x480-1024x768 Color configuration RGB stripe Power input DC 11-24V Power consumption max. 8W Video system 3x Video inputs (PAL/NTSC) 1x VGA input Dimensions Display Case : 182x120x30 mm Display : 158 x 85 mm Video input signal 1.0Vp-p, composite video Brightness 650 cd/m² Contrast 600:1 Operating Temperature -30° bis 85°C Features Full function OSD control (englisch) Built-in Stereo-speakers Earphone-Output (rear side) Automatic switching to rear camera (by signal detection on AV3) Auto Power On/Off Touchscreen-pencil integrated in rear enclosure Autodimmer What is included ? - 7" VGA Touchscreen TFT with Video/Audio-support - Infrared Remote Control - Car dash mounting bracket - Touchscreen pencil - VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length - Power Adapter f. EU 230V - Cigarette Lighter Adapter - Touchscreen Driver-CD - Manual The display is vibration- and shock-tested (BS EN 61373 : 1999). Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz
