Jetway JNF77-1G6E-LF (1.6Ghz, FANLESS)

PRODUCT IS CURRENTLY NOT AVAILABLE !

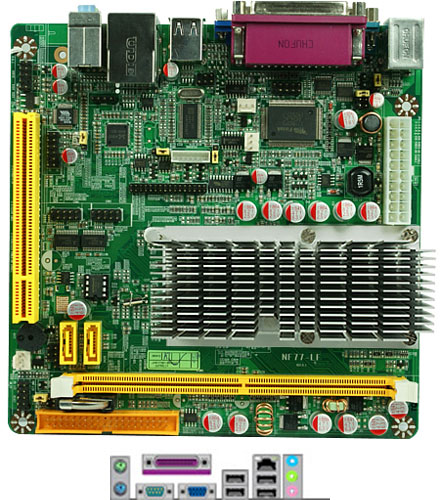

Jetway JNF77-1G6E-LF  (1.6Ghz, FANLESS)
  • Fanless !
  • 1.6Ghz !
  • FSB800 !

- VIA VX800 Chipset
- VIA Eden 1.6GHz(90nm,FSB 800MHz,1.6GHz) processor
- Integrated Chrome9 HC3 DX9 IGP
- Integrated LVDS support 24-bit TFT LCD
- Support 1 x 32-bit PCI slot
- Support 2 x Serial ATA 2 Devices
- Windows Vista Ready
- Onboard Gigabit LAN
- Support DC Fan
- VIA VT1708B HD Audio Codec with 6-Channel
- 170 x 170mm Mini-ITX Form Factor
- Support Watch dog Technology




Scope of supply:
- Jetway JNF77-1G6E-LF with 1.6Ghz CPU
- DriverCD
- Manual
- ATX shield
- IDE-cable
- SATA-cable


Share

129.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

5 von 5 Sternen
2 ratings

Add to cart
Compare
CPU VIA Eden 1.6GHz
Graphics VIA Chrome9 HC3 IGP
Formfactor ITX (17x17cm)
RAM 1x DDR-II 533/667
Audio VIA VT1708B HD Audio Codec
Base VIA ITX
USB 4x USB 2.0
Firewire --
IDE/SATA 1x IDE, 2x SATA
LAN 1x 10/100/1000 Mbit
Parallel 1x
Serial 2x
no TV-Out
yes PCI
no Mini-PCI
yes IDE
no DVI
no 800x480 Resolution
yes Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
no CPU changeable
no Compact Flash
CPU Support VIA Eden 1.6GHz(90nm,FSB 800MHz, 1.6GHz) processor
Front Side Bus 800MHz
Chipset VIA VX800 Chipsets
VIA Chrome9 HC3 IGP, 128Bit 3D engines( Share System Memory:64/128/256MB)
Memory 1 * 240-pin DIMM Sockets for un-buffered DDR2 667MHz SDRAM up to 2GB
Expansion Slots 1 * 32-bit PCI slots
Power Management ACPI S3/S4 Compliant ,supports VIA PowerSaver™ feature
Storage 2 * Serial ATA2 3Gb/s connectors with RAID 0,1 functions
1 * 40-PIN Ultra DMA 133/100/66 IDE connector
Audio VIA VT1708B HD Audio Codec with 6-Channel
Ethernet LAN 1 * RTL8111C 10 / 100 / 1000 PCI LAN
USB Embedded 4 * USB 2.0/1.1
LVDS Onboard 24-bit dual channel LVDS connector
Rear Panel I / O 4 * USB 2.0/1.1 ports
1 * PS/2 connector for Keyboard and Mouse
1 * RJ-45 ports
3 * Audio I/O ports ( Line-in, mic and line-out )
1 * VGA port
1 * DB-9 RS232 COM port
1 * DB-25 Connector for Printer Port
Internal I / O 1 * CPU Smart Fan Connector, 2 * Sys/Chassis Fan Connectors
3 * 9-Pin COM Port headers
1 * WI-FI header
1 * LVDS header
1 * IR header
BIOS Award 4MB DIP-SPI Flash ROM
Form Factor Mini-ITX (170mmx170mm)
Temperature Operating within 0~60 centigrade
Storage within -20-85 centigrade
Data sheet Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 2 ratings
5 von 5 Sternen from vitalibraun am 16.04.2010 | See all my comments

Sehr gutes Motherboard, sehr sparsam und doch schnell, empfehlenswert

5 von 5 Sternen from xp8it am 23.04.2009 |

Feine Sache, Ubuntu 8.10 Server + Asterisk laufen problemlos.
Der CPU-Kühler ist kaum über 40°C.

Positiv zu erwähnen ist natürlich die schnelle Lieferung!
