Infill G4 Double-DIN Car-PC Barebone (1.5Ghz, FM radio, GPS) [without amplifier]
[http://www.minipc.de/catalog/il/918]

  9999.00 EUR
incl. 19% VAT, plus shipping

  • Double DIN size !
  • GPS integrated !
  • Motorized !

CURRENTLY NOT AVAILABLE!

Car-PC Barebone : Choose yourself : RAM, HDD, Slimline SlotIn drive


Model without integrated amplifier for connecting to external power amplifier !

Fast Boot : 3 Seconds boot time into Windows !

Battery protection : The device turns off power completely after 18 hours of inactivity (deep discharge protection).

Dualview : Dualview possible via the additional VGA output.

Attention : Please only use Panasonic or Quanta Slot-In drives because of the location of the eject button !

CPU VIA C7 1.5GHz
Chipset VIA CX700M
Grafik VIA UniChrome™ Pro II IGP (Built in HDTV Encoder with Macrovision® support)
Hardware Acceleration for MPEG-2, MPEG-4, WMV9

Memory

1x SO-DDR2 256-1024 MB RAM(not included)

LCD

800 X 480 6.5" TFT LCD SHARP (500 nits)

TOUCH

6.5" Touch Screen

Audio

HD Audio CODEC

USB

Front 1 port / Rear 2 port

HDD

1x 2.5" SATA HDD (not included)

DVD-ROM

1x Slimline CD/DVD Slot-In (not included)

RADIO

FM section:87.5~108 MHz / AM section:153~1710 KHz

AMP

4CH not prepowered / 5.1CH Preout 3V rms

GPS

Internal GPS Module (Sirf3 chipset) with external aerial

Video

1x Rear camera-input (NTSC), 1x VGA output

S/W

Infillstation Touchscreen Desktop Interface

Compability

WinXP (recommended), Win9x/ME, NT, DOS, Linux,...

Dimensions

178mm (W) x 100mm (H) x 193mm (D) [plus 32mm Overlap Front]

Scope of Supply

- Infill G4 Car-PC Barebone
- IR Remote
- Touchscreen-pencil (Touchscreen can also be used with fingers)
- GPS-aerial
- Video-Adapter-connector cable
- USB-Adapter-connector cable
- Power/Speakers/Misc-connector cable
- DriverCD
- Infill CarPC Touchscreen Desktop Software



Installation Tutorial : Support / Manuals



Note : Self-Assemblng only recommended for advanced users. We can assemble your system very fast ! Please order through the systembuilder then and select "Assembling" in the last step.

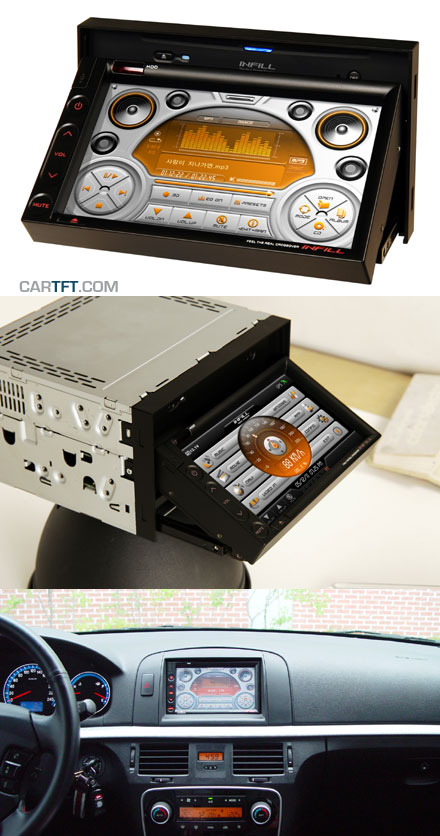

Image gallery :


Connectors (Rear)
- 2x USB
- Center Cinch (blue)
- Sub Cinch (orange)
- Rückfahrkamera Cinch input (yellow)
- GPS aerial input
- DMB aerial input (not useable/included in Europe)
- microphone input
- Radio aerial input
Connectors ISO
- Green/Black : Rear Left Negative
- Green : Rear Left Positive
- White/Black : Front Left Negative
- White : Front Left Positive
- Purple/Black : Rear Right Negative
- Purple : Rear Right Positive
- Gray : Front Right Positive
- Gray/Black : Front Right Negative

- Light Green : Reverse Gear
- Orange/White : Illumination
- Pink : Attenuator
- Brown : Steering wheel control
- Blue : Antenna Turn On
- Light Blue : Hand Brake
- Blue/White : Amplifier Turn On
- Red : Ignition Plus
- Yellow : Power
- Black : GND/Minus
