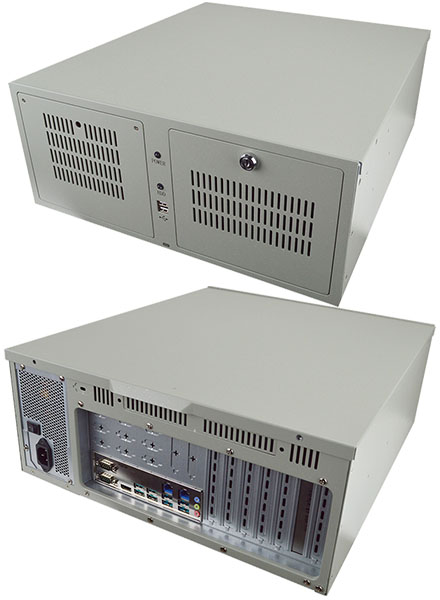

Jetway HB190MA3H-R680-AI4 (Intel R680E Chipset, LGA1700, DDR5-4800Mhz) [Intel HAILO-8 / 104 TOPS]
[http://www.minipc.de/catalog/il/3567]

  2929.00 EUR
incl. 19% VAT, plus shipping

  • Intel R680E Chipset !
  • 2x LAN !
  • 8x USB3.2 !
  • HAILO-8 Card !

AI Edge Server with options of 52 TOPs and 104 TOPs AI PCIe Module. Intelฎ R680E chipset supports LGA 1700 socket for 12 th /13 th Core™ i9/i7/i5/i3 Pentiumฎ Processor with DDR5 4800MHz up to 128GB memory, AIPC



Model

– HB190MA3H-R680-AI4 (2* HAILO-8™ Card/104 TOPS)

CPU/Chipset

– Intelฎ 13th LGA1700 Socket Core i9/i7/i5/i3/Pentium/Celeron Processor (Max. 125W TDP, 240A)
– Intel R680E Chipset

MB Model

– MA3H-R680 (TPM2.0, ATX, 305* 244mm)

AI Accelerator

– Model: ADPIE8AIHLA (144.7* 69mm)
– 1/2* HAILO-8™ Card (by model)
– PCIe Gen.3 x8 interface

BIOS

– AMI Flash ROM BIOS
*Support recover crashed BIOS data tool by a USB flash pen driver:
1. Using JetBIOS SW back up tool with any external USB ports
2. Using JetBIOS HW recovery tool with specific USB port (internal USBX)

Memory

– 4* Dual CH DDR5 4800MHz Long-DIMM up to 128GB support ECC

Network

– 1* Intel i225-LM 2.5GbE
– 1* Intel i225-V 2.5GbE

Graphics

– Intelฎ UHD Graphics, shared memory
– 1* HDMI 2.0b (Max Resolution: 4096ื2160@60Hz)

Audio

– HD audio: Realtek ALC888S

Storage

– 1* M.2 M-key (2242/2280, PCIe Gen.4 x4) support NVME
– 1* M.2 M-key (2242/2280, PCIe Gen.4 x4/SATA Interface) support NVME
– 4* 2.5”/3.5” Device (4 HDD TRAY Design,support HOT SWAP)

Expansion

– 1* M.2 E-Key (2230, PCIe Gen.3 x1/USB2.0 interface) support CNVi for WiFi
– 1* M.2 B-Key (3042/3052, PCIe Gen.3 x1/USB3.2 Gen.2/USB2.0 interface) for 4G/5G
– 2* PCIe x16 GEN4 (1 x16 signals or 2 x8 signals) for Graphic card

Rear Panel I/O

– 8* USB3.2 (Gen.2)
– 2* LAN
– 1* HDMI
– 2* COM (1* RS232/422/485 support 5V/12V TTL, 1* RS232)
– 1* Line-in, Line-out, MIC

Front Panel I/O

– 1* Power SW
– 1* Reset SW
– 1* Power LED
– 1* HDD LED
– 2* USB2.0

Internal Connector

– SIM Card Holder
– 1* 8-bits GPIO

Power Source

– Power: ATX 500W
– MB: ATX 24pin + 8pin

Compliance

– CE, FCC, LVD, RoHS, ErP Ready

Dimensions

– System: 480(W)* 430(D)* 177(H) mm
– Net Weight: 5.8KG
– Gross Weight: 6.8KG

Temperature

– Operating Temperature: 0 ~ 50ฐ C
– Storage Temperature: -40 ~ 85ฐ C
– Humidity: 10% ~ 95% RH @40ฐC (non-condensing)

OS Support

– Windows 11, Linux
