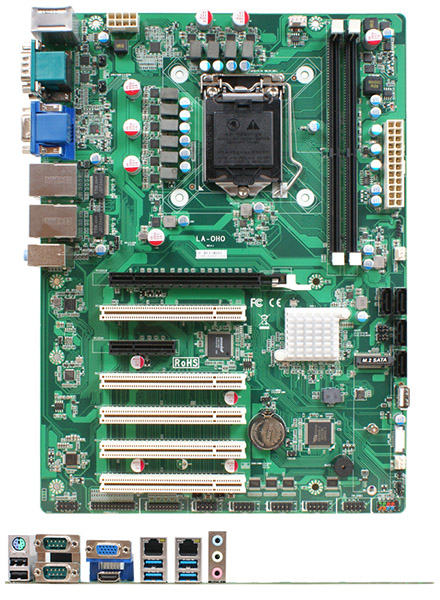

Jetway JLA0H-00 ATX (Intel Comet Lake H410, LGA1200, 2x LAN, 2x COM)
[http://www.minipc.de/catalog/il/3429]

  309.00 EUR
incl. 19% VAT, plus shipping

  • LGA1200 Socket !
  • H410 Chipset !
  • ATX !



Model

– JLA0H-00
– JLA0H-02: Support TPM2.0

Form Factor

– ATX (305 * 220mm)

Processor System

– Intel® LGA1200 Socket supports 10th Gen. Core Processor (Max. 100W)
– Intel® H410 Express chipset
– AMI 256Mb Flash ROM BIOS

Expansion Slot

– 1* M.2 (M-key, 2242/2280, SATA Interface, CO-lay SATA4)
– 4* SATA4 (Co-lay M.2)
– 1* PCIe x16 + 1* PCIe x4 slot
– 5* PCI slots

Memory

– 2* LONG DIMM DDR4 2933/2666 MHz DRAM up to 64GB

Graphics

– Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution: 1920×1080@60Hz)
– 1* HDMI 1.4 (Max Resolution: 4096×2160@30Hz)
– Support Dual Displays

Ethernet

– 1* Intel® i225-LM 2.5GbE
– 1* Intel® i219-LM GbE

Audio

– HD audio: Realtek ALC662 or ALC888
– Line-Out, Line-in, MIC

SATA

– 4* SATAIII (6.0Gb/s)

Rear I/O

– 1* VGA
– 1* HDMI
– 2* RJ45
– 4* USB3.2 (Gen. 1)
– 2* USB2.0
– Line-in, Line-out, MIC
– 2* RS232/422/485 (support 5/12V TTL)
– 1* PS/2

Internal I/O

– 2* USB 2.0
– 1* USB2.0 (Erect)
– 4* RS232 (COM3/4 support 5/12V TTL)
– 4* SATAIII (6.0Gb/s , SATA4 Co-lay M.2 M key)
– 1* Parallel (Co-lay GPIO)
– 1* GPIO (16 bit, Co-lay Parallel)
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS / I2C
– 1* AT mode
– 1* TPM2.0 (option)

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)

Power

ATX PWR, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, RoHS, REACH

Temperature

– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

OS Support

– Windows 10, Linux
