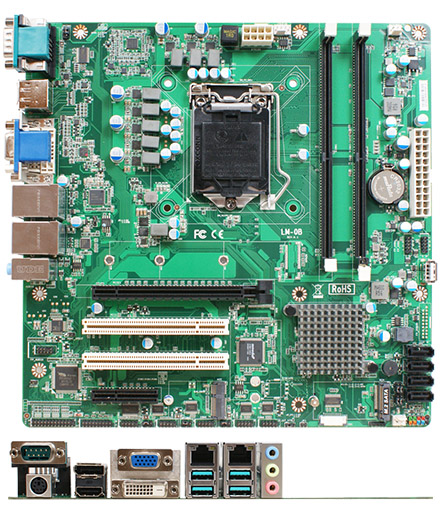

Jetway JLM0B-00 Micro-ATX (Intel Coffee Lake-S H310, LGA1151, 2x LAN, 1x COM)
[http://www.minipc.de/catalog/il/3428]

  279.00 EUR
incl. 19% VAT, plus shipping

  • LGA1151 Socket !
  • H310 Chipset !
  • MicroATX !



 Model

– JLM0B-00
– JLM0B-0A (Without Audio)

 Form Factor

– Micro ATX (244 * 244mm)

 Processor System

– Intel LGA1151 Socket support 9/8th Gen. Core Processor (Max 95W)
– Intel H310s chipset
– AMI 128Mb Flash ROM BIOS

 Expansion Slot

– 2* PCI
– 1* M.2 M-key (2242, Co-lay SATA4)
– 1* M.2 E-key (2230, support CNVi)
– 4* SATA (SATA4 Co-lay M.2)
– 1* PCIe x16, 1* PCIe x4

 Memory

– 2* DDR4 2666/2400/2133MHz LONG DIMM up to 64GB

 Graphics

– Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution: 1920×1080@60Hz)
– 1* HDMI 1.4 (Max Resolution: 4096×2304@24Hz)
– 1* DVI-D (Max Resolution: 4096×2304@24Hz)
– 1* DP (Max Resolution: 4096×2304@60Hz)
– Support Dual Displays

 Ethernet

– 1* Intel I219-V GbE
– 1* Intel i211AT GbE

 Audio

– Realtek HD audio (JLM0B-00 only)

 SATA

– 4* SATAIII (6.0Gb/s)

 Rear I/O

– 1* VGA
– 1* DVI-D
– 1* HDMI
– 1* DP
– 2* RJ45
– 4* USB3.1
– 1* RS232/422/485 (support 5/12V)
– 1* PS/2
– Line-in, Line-out, MIC

 Internal I/O

– 4* USB 2.0, 1* USB2.0 (Erect)
– 5* COM (COM2: RS232/422/485, COM3-6: RS232, COM1-4: support 5/12V TTL)
– 4* SATAIII (6.0Gb/s, SATA4 Co-lay M.2 M-key)
– 1* M.2 M-key, 1* M.2 E-key
– 1* Parallel
– 1* GPIO (16 bit)
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS/I2C
– 1* AT mode
– 1* TPM2.0 (option)

 Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)

 Power

ATX PWR (8+24 pin), AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

 Compliance

– CE, FCC, RoHS, REACH

 Temperature

– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

 OS Support

– Windows 10, Linux
