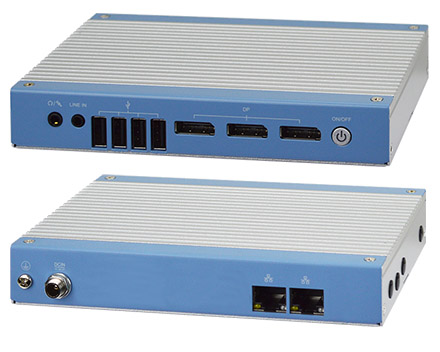

Jetway HB368F21-6210-S (Intel Elkhart Lake N6210) [3x DisplayPort, 2x LAN]

[http://www.minipc.de/catalog/il/3372]

  369.00 EUR
incl. 19% VAT, plus shipping

  • Intel Elkhart Lake SoC !
  • HB368F21 !



Model

– HB368F21-6210-S (non-WiFi)
– HB368F21I-6210-S (WiFi)

CPU/Chipset

– Intelฎ Elkhart Lake SoC Processor(N6210, TDP 6.5W)

BIOS

– AMI Flash ROM

Memory

– 1* DDR4 3200MHz SO-DIMM up to 32GB

Network

– 2* Realtek RTL8119I GbE

Graphics

– Intelฎ HD Graphics, shared memory
– 3* DP (Max Resolution: 4096ื2160@60Hz)
– Support Triple Displays

Storage

– 1* M.2 M-key (2242/2280, PCIe Gen.3 x2/SATA interface) support NVME
– 32GB eMMC onboard (option)

Expansion

– 1* M.2 E-key (2230, PCIe Gen.3 x1/USB2.0 interface)
– 1* M.2 B-key (3042,USB3.0 interface)

Rear Panel I/O

– 2* RJ45
– 1* DC in (Lockable)

Front Panel I/O

– 1* Power button + Power LED
– 4* USB2.0
– 1* Audio(Line out+MIC)
– 1* Line in
– 3* DP

Internal Connector

– SIM Card Holder

Power Source

– Adapter : AC 90~240V input / DC12V_40W output
– MB : DC12~36V input

Compliance

– CE, FCC, LVD, RoHS, ErP Ready

Dimensions

– System: 160.2 (W) x 106 (D) x 27 (H) mm
– Net Weight: 0.61KG: Gross Weight: 1.12KG

Temperature

– Operating Temperature: -20 ~ 60ฐ C (Under the condition of using M.2 interface SSD)
– Storage Temperature: -20 ~ 60ฐ C
– Humidity: 10% ~ 90% RH @40ฐC (non-condensing)

OS Support

– Windows 11, Linux
