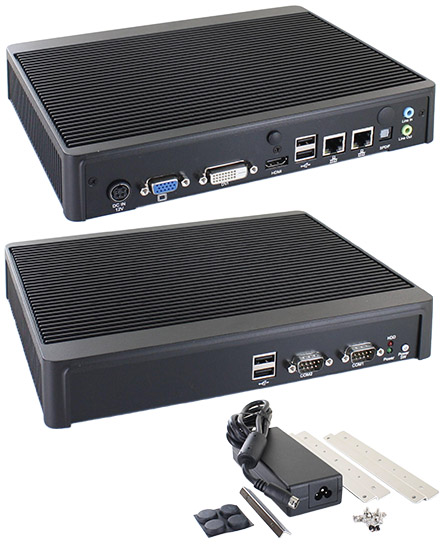

NEXCOM NDiS 166-1Q MiniPC Barebone (Intel rPGA QM67, 2x LAN, 2x MiniPCIe)
[http://www.minipc.de/catalog/il/3128]
  29.00 EUR
incl. 19% VAT, plus shipping

  • Dual LAN !
  • Dual Output !
  • 12V !
  • 35W TDP Fanless !
Support: Specifications | Manual [EN]

NDiS 166 is specially designed to be mounted behind the large-size display device such as LCD TV or PDP. NDiS 166 supports dual display output by DVI, HDMI or VGA. The NDiS 166 operates on 2nd generation Intel® Core™ Processor Family with QM67 integrated graphics controller. NDiS 166 can smoothly playback dual Full HD video. NDiS 166 is ideal as advanced digital signage player for advertising, hospitality, brand promotion and digital menu board application




CPU2nd generation Intel® Core™ rPGA socket type processor (up to 35W TDP)
Chipset

Intel® QM67
Intel integrated graphics

Memory2 x 240-pin DIMM sockets, Supports DDR3 1333/1066MHz non-ECC,
un-buffered memory up to 16GB (Single socket max. 8GB)
Front I/O 2 x USB 2.0
2 x RS-232
1 x On/Off power switch
2 x LED for PW and HDD
Rear I/O 1 x +12V DC-in
1 x VGA
1 x DVI-D
1 x HDMI
2 x USB 2.0
2 x RJ45 with LED for 10/100/1000 Mbps Ethernet
1 x SPDIF
1 x Line-out/1 x Line-in
2 x Antenna hole for Wi-Fi and TV tuner
Storage 1 x 2.5" SATA HDD bay
Expansion Slots1 x Mini-PCIe for optional wireless LAN module
1 x Mini-PCIe for optional TV tuner module
Dimensions 250mm (W) x 194mm (D) x 40mm (H)
(9.8" x 7.6" x 1.6") w/o mounting bracket
Construction Top cover made by aluminum for main heat exchange
Chassis made by steel in black
Power Supply 1 x External 80W AC/DC power adaptor
Input : 100~240V AC
Output : +12V DC
Environment Operating temperature : 0°C to 40°C
Storage temperature : -20°C to 80°C
Humidity : 10 to 90% (non-condensing
Certification CE approval
FCC Class A
Operating SystemWin7/Win8/XP/WES7/WE8S/WES2009/Linux
