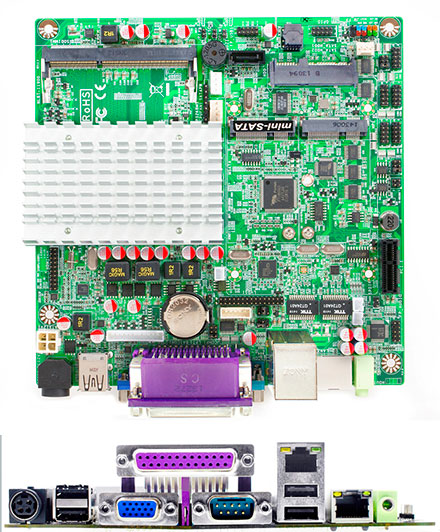

Jetway NLBT-I2930 (Intel Bay-Trail)
[http://www.minipc.de/catalog/il/2080]
  229.00 EUR
incl. 19% VAT, plus shipping


  • CPU-Chipset
  • INTEL Bay Trail I1900 / N2930 Quad Core processor
  • INTEL® Bay Trail SOC chipset
  • 2 Phase CPU Power Support
  • I.O Chipset
  • Fintek® F71869A
  • Memory
  • 1* SO-DIMM slot
  • Support DDR3L 1333
  • Max. capacity of system memory up to 8GB
  • Expansion Slots
  • 1* Mini PCI-E connector
  • 1* PCIex1 slot
  • Storage
  • 1* Serial ATA2 3Gb/s connector or 1*SATA +Power Connector(7+15Pin)
  • 1* M-SATA Connector
  • Audio
  • AVLC887 Audio CODEC
  • HD Audio CODEC
  • Ethernet LAN
  • Realtek® RTL8111G Chip
  • PCI Express Gigabit LAN
  • LVDS
  • Onboard 24-bit Dual channel
  • USB
  • 5* USB 2.0/1.1(3 distribute in back panel, 2 distribute in mid-board)
  • 1* USB3.0
  • Special Features
  • Support CPU Smart Fan
  • Support Watch dog Technology
  • Support GPIO Technology
  • Support VGA header
  • Support Power On board
  • Support Amplifier function(3W)
  • Support Slim hard drive design
  • Support 1*RS422/RS485 COM header
  • Thunder Protection Function
  • All Solid Capacitor design
  • All Power Pack MOSFET design
  • Back Panel I / O
  • 3* USB 2.0/1.1 ports
  • 1* USB3.0 port
  • 1* RJ-45 port
  • 1* Line-out port
  • 1* VGA port
  • 1* COM port
  • 1* 12V DC in
  • Internal I / O
  • 1* USB 2.0/1.1 headers for 2 USB 2.0/1.1 ports
  • 2* CPU / Chassis Fan connectors
  • 5* COM headers(1*RS422/RS485)
  • 1* PS2/KB header
  • 1* 4-pin ATX 12V Power connector
  • 1* 4-pin SATA Power connector
  • 1* 12-pin VGA header
  • 1* 20-pin HDMI header
  • 1* 24-bit Dual Channel LVDS header
  • 1* GPIO header
  • 1* Mini PCI-e connector
  • 1* M-SATA Connector
  • 1* SATA +Power Connector(7+15Pin)(Option)
  • 1* Audio header
  • 1* Front panel header
  • 1* HDMI _SPDIF header
  • BIOS
  • AMI 64MB DIP Flash ROM
  • Form Factor
  • Thin mini ITX Form Factor(170mm X 170mm)
