Mitac PD14TI (Intel D2500HN) (Intel Atom 2x 1.86Ghz CPU) [FANLESS]
[http://www.minipc.de/catalog/il/1776]

  999.00 EUR
incl. 19% VAT, plus shipping

  • Mini-PCI-Express !
  • 2x 1.86Ghz !
  • 2x RS232 !
Support: Specifications | Manual [EN] | Drivers

This board is produced by MITAC, the OEM producer of Intel D2500HN. This board is identical with Intel D2500HN (even BIOS-compatible) and available until at least 2017.

- Dual-core Atom
- Passive thermal solution; 35mm z-height
- Legacy features for basic computing needs

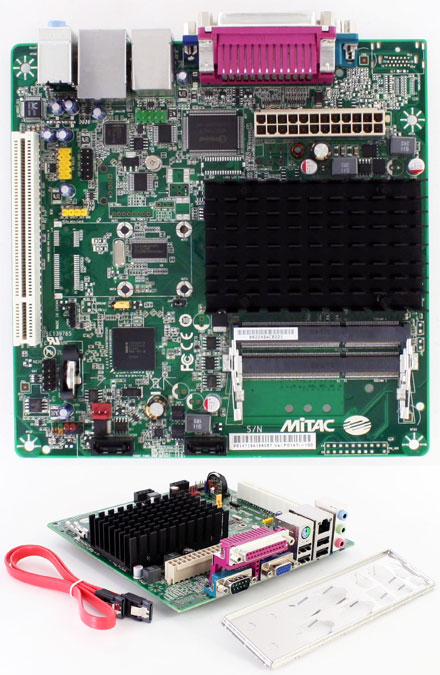

Name Mitac PD14TI (Intel D2500HN)
Form Factor Mini-ITX Mainboard
CPU Intel® Atom™ D2550 (2x 1.86GHz)
1MB Cache, Without Hyper-Threading
Chipset Intel NM10 Express
Graphics VGA
Memory 2x SO-DDR3 800/1066, 4GB max, Single channel
Power 24 Pin ATX
LAN 1x Intel 10/100/1000 MBit
Connectors (rear) - 4x USB 2.0
- 1x LAN RJ-45
- 3x Audio
- 1x PS/2
- 1x LPT
- 1x RS232
- 1x VGA
Audio 2+2 Channel HD Audio
Connectors (internal) - 2x SATA-II (3GB/s)
- 4x USB 2.0
- 1x PCI
- 1x RS232
- Front Audio
Included - Mitac PD14TI (D2500HN) Mainboard (with 2x 1.86Ghz Atom CPU)
- I/O ATX rear plate
- 1x SATA cable
