CTF700-HCT - VGA 7" TFT - Capacitive Multi-Touchscreen USB - Autodimmer - IR Remote - Audio (800nits , TMR-Technology)
[http://www.minipc.de/catalog/il/1725]

  439.00 EUR
incl. 19% VAT, plus shipping

  • High brightness !
  • One-cable-4-all !
  • TMR !
  • 800 nits !

The CTF700-HCT delivers an impressive 800 cd/m2 light output – a light level that places it at the very top end of the market in terms of brightness. This light output is achieved with no increase in power consumption over previous models. The model is an active matrix transmissive TFT that offer robust industrial quality and performance with a wide operating temperature range of -30°C to 80°C.

The Display works on basis of the combination of transmissive and Micro-Reflective-Technology (=TMR). TMR connects the advantages of the conventional technology, where the LCD is lighted from the rearside with the advantages of the reflektive TFT-LCD-technology. This way the image quality is improved under direct sunlight.

Unlike a transflective display, TMR is more transmissive than reflective, with some reflective properties. The advantage is better color saturation than a true transflective technology.

The new CTF-700-HCT TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the multi-touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The device has integrated Stereo-speakers, a rear camera input and the dimmer button in the front will enable perfect viewing pleasure also during the night.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTF-700-HCT can be used with any PC/MAC with VGA- and USB port (Multi-Touch needs compatible OS like eg. Win7/8, otherwise only Single-Touch mode useable).

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..


Spezifications
Screen size 7" digital
Touchscreen 2-finger capacitive multi
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1200 (also eg. 1366x768)
Color configuration RGB stripe
Power input DC 11-24V
Power consumption max. 8W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
Dimensions Display Case : 184x129x32 mm
Display : 154 x 93 mm
Video input signal 1.0Vp-p, composite video
Brightness 800 cd/m²
Contrast 500:1
Vibration IEC68-2-6
Operating Temperature -30° to 80°C
Features Full function OSD control (englisch)
Built-in Stereo-speakers
Earphone-Output (rear side)
Automatic switching to rear camera (by signal detection on AV3)
Auto Power On/Off
Touchscreen-pencil integrated in rear enclosure
Autodimmer

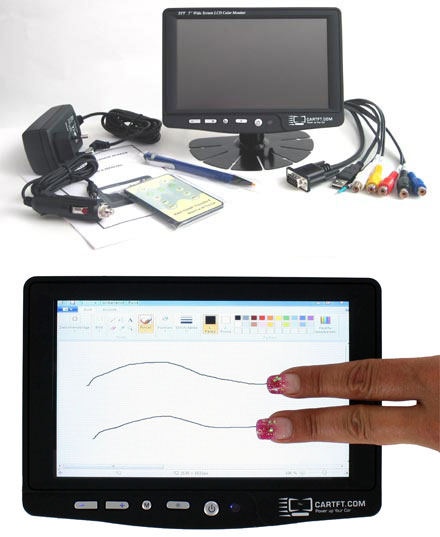

What is included ? - 7" VGA Multi-Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash mounting bracket
- Touchscreen pencil
- VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual



Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz




Sunlight-readable-test with CTF700-SH in Death Valley (USA)
