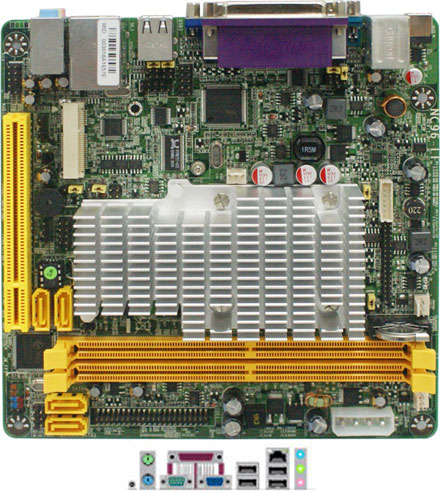

Jetway NC96FL-525-LF (with integrated Atom 2x 1.8Ghz CPU, LVDS, Onboard PSU) [FANLESS]
[http://www.minipc.de/catalog/il/1380]

  999.00 EUR
incl. 19% VAT, plus shipping

  • Dual-Core !
  • Intel Atom !
  • GPIO
  • FANLESS !
Support: Specifications [EN]

The Jetway NC96FL-525-LF is an alternative mainboard for Intel D525 with onboard PSU.

CPU INTEL ® Atom Processor D525 (45nm,1.80GHz,1024MB L2 Cache)
Chipset INTEL® Atom Processor D510 / D525 + NM10 Express Chipset
Memory 2 * 240-pin DIMM Sockets for un-buffered Single Channel DDR2 800/667 SDRAM up to 4 GB
Expansion Slots 1 * PCI slot, 1 * Mini PCI-E socket
Storage

2 * Serial ATA2 3Gb/s connectors
1 * Floppy connector
1 * IDE connector

Audio Realtek ALC662 6-Channel HD Audio CODEC w SPIF in and out
Ethernet LAN RTL8111DL Gigabit LAN
LVDS Onboard 18-bit single channel LVDS connector
USB Embedded 7* USB 2.0/1.1
Special Features - Intel Atom Processor D525
- Support DC FAN
- Support CPU Smart Fan
- Support Watch Dog Technology
Rear Panel I / O 4 * USB 2.0/1.1 ports
1 * PS/2 Mouse & 1 * Keyboard connector
1 * RJ-45 port
3 * Audio I/O ports ( Line-in, mic and line-out )
1 * VGA port
1 * COM port
1 * Parallel port
1 * 12V DC in
Internal I / O 3 USB 2.0 ports
3 * NB / Chassis Fan connectors;
1 * LVDS header/ 1* CD IN /1 * GPIO
1 * AUDIO header
1* RS232/RS422/RS485 connector
1 * MINI PCI-E connector
BIOS Award 8MB SPI Flash ROM
Form Factor Mini ITX Form Factor(17cmx17cm)
Scope of supply - Jetway NC96FL-525-LF ITX Mainboard
- DriverCD
- Manual
- 2x SATA cable
- 1x IDE cable
- ATX I/O shield
