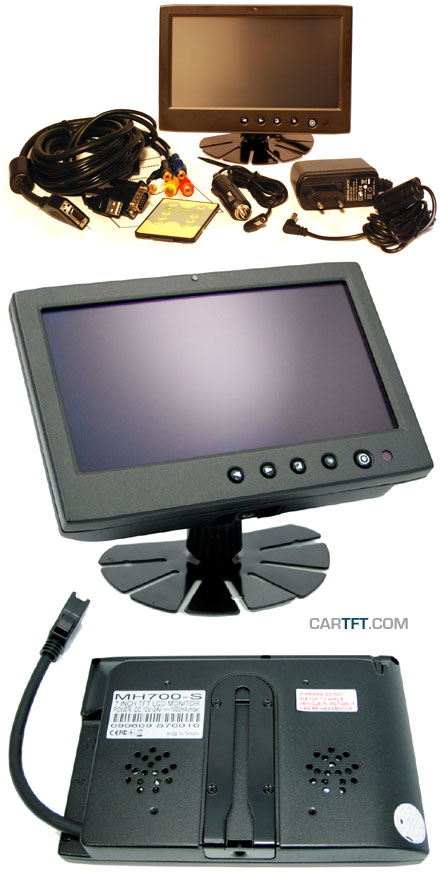

MH700-S - VGA 7" TFT - Touchscreen USB - Autodimmer - IR Remote - Audio (600nits , Full metal enclosure) -TRANSFLECTIVE PRO-
[http://www.minipc.de/catalog/il/1090]

  999.00 EUR
incl. 19% VAT, plus shipping

  • High brightness !
  • One-cable-4-all !
  • Full metal case !
  • 600 nits !
Support: 800x480 Driver (Windows 7)

With special sunlight readable transflective TFT and Anti-Glare surface!

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the readability is still ensured by a transmissive backlight.

The MH700 delivers an impressive 600 cd/m2 light output – a light level that places it at the very top end of the market in terms of brightness. This light output is achieved with no increase in power consumption over previous models. The model is fully wrapped into a metal enclosure, the temperature range is -35°C to 85°C. The contrast ratio is 650:1.

The new MH700 TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The device has integrated Stereo-speakers, a rear camera input and the dimmer button in the front will enable perfect viewing pleasure also during the night. On the rear side there is a touchscreen pencil integrated.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The MH700 can be used with any PC/MAC with VGA- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..


Spezifications
Screen size 7" digital
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1080
Color configuration RGB stripe
Power input DC 11-24V
Power consumption max. 8W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
Dimensions Display Case : 182x120x30 mm
Display : 158 x 85 mm
Video input signal 1.0Vp-p, composite video
Brightness 600 cd/m²
Contrast 650:1
Vibration IEC68-2-6
Operating Temperature -30° bis 85°C
Features Full function OSD control (englisch)
Built-in Stereo-speakers
Earphone-Output (rear side)
Automatic switching to rear camera (by signal detection on AV3)
Auto Power On/Off
Touchscreen-pencil integrated in rear enclosure
Autodimmer
What is included ? - 7" VGA Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash mounting bracket
- Touchscreen pencil
- VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual


The display is vibration- and shock-tested (BS EN 61373 : 1999).


Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz


Sunlight-readable-test with CTF700-SH in Death Valley (USA)
