Fujitsu D2703-S (for AMD Mobile Turion/Sempron) + AMD Sempron 2100+ (1Ghz) CPU [BUNDLE]

PRODUCT IS CURRENTLY NOT AVAILABLE !

Fujitsu D2703-S (for AMD Mobile Turion/Sempron) <b>+</b> AMD Sempron 2100+ (1Ghz) CPU [<b>BUNDLE</b>]

Mini-PCI Express
2x SO-DDR2
Dual LAN
ATI Direct X9 !

Bundle : Mainboard is shipped together with AMD Sempron 2100+ 1Ghz CPU (8W) and passive cooling heatsink.

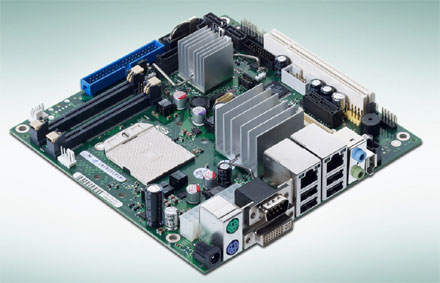

D2703-S is a special designed mainboard for industrial applications. Extended temperature ranges, long life capacitors and a special tin-plated PCB built an optimal hardware basis for industrial systems. Additionally we offer an extended availability (up to 48 months) and additional hardware and software documentation. D2703-S provides dual GBE LAN Ethernet, Controller on board, Serial ATA II RAID, Audio on board (HDA), ATI Radeon Graphics, CF support for Embedded OS, USB 2.0, Instantly Available PC (IA-PC) and Improved Thermal Management/System Monitoring.
[more]

CPU	AMD Sempron 2100 1.0Ghz
Graphics	ATI Radeon X1250
Formfactor	ITX (17x17cm)
RAM	2x SO-DDR-II
Audio	Realtek ALC262
Base

USB	8x USB2.0
Firewire	2x
IDE/SATA	1x IDE, 4x SATA
LAN	2x 10/100/1000
Parallel	--
Serial	--

no	TV-Out
yes	PCI
yes	Mini-PCI
yes	IDE
yes	DVI
no	800x480 Resolution

no	Passive-Cooling
yes	PCI-Express
no	PCMCIA
yes	SATA
yes	CPU changeable
no	Compact Flash

Board Size	Mini-ITX: 6.7“ x 6.7“ (170 x 170 mm)
Chipset	AMD M690E & SB600
Memory	2 SO DIMM Sockets (1.8V), 256MB - 8GB, Single Channel or Dual Channel DDR2 800/667 SDRAM, unbuffered, no ECC
Processors	AMD Mobile Turion™ 64 X2 Dual Core Processors AMD Mobile Sempron™ Processors Mobile Socket S1g1 (PGA 638), max. 35W, HyperTransport™ 1; 800MHz
Power Specification	BTX12V (24 Pin) or ATX12V (20 Pin) Power Supply required Support for Soft-Off Power Supplies or 24V / 5A via DC-connector (Rear I/O connector or onboard connector) 5V and 3.3V Supply Voltage on PCI Slots (PCI Rev. 2.3) 3.3V Auxiliary Supply Voltage on PCI Slots (Wake-Up Function) On board CPU Voltage Regulator, 5V / 2A Auxiliary Power (BTX/ATX only) required for USB Wake-Up from Save-to-RAM, Save-to-Disk
Graphics	Integrated ATI Radeon X1250 graphics; shared memory (up to 256MB); DirectX 9 compliant; DVI, VGA and Dual Channel LVDS support
Audio	Realtek ALC262 (HD Audio); HW 3D Stereo Enhancement; SW Wavetable Synthesis Support
LAN	Dual Realtek RTL8111C 10/100/1000 Ethernet controller
Drives	1x ATA 133 Interface for 1 Drive 4x Serial ATA II 300 Interfaces (max 3 GBit/s); up to 4 Drives; RAID 0/1/10 1x CF Interface (Typ I)
BIOS	Phoenix TrustedCore BIOS Version V6.00 modified and adapted by Fujitsu Siemens Computers; Recovery BIOS, SM-BIOS (DMI), BIOS Update via USB (stable user settings), Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCI Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3 (Save-to-RAM), ACPI S4 (Save-to-Disk), Wake on time from S5; Flexible LVDS Support
Special Features	Silent Fan : Independent temperature related processor fan and system fan supervision and control System Guard : View and adjust Silent Fan Silent Drives Noise reduction for optical and hard disk drives Recovery BIOS : Restores a corrupted BIOS Desk Update Simple driver update with Driver&Utilities; DVD Multi Boot : Comfortable boot from any boot device

Data sheet	Download (PDF)
Data sheet	Print view

Please login for creating product ratings.

Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: Average rating, based on 1 ratings

from razvz am 13.12.2009 | See all my comments

This kit looks like a good deal at the first look. However, this price is a bit steep. You can get one of the Zotac 9300 ITX LGA 775 mobos + any LGA 775 CPU and you can get something better than this combo.

This kit, however, comes with a low power AMD CPU, 8W. There's currently nothing like this in the Intel world which has a similar performance. Atom draws about the same power, but doesn't have the same level of performance.
