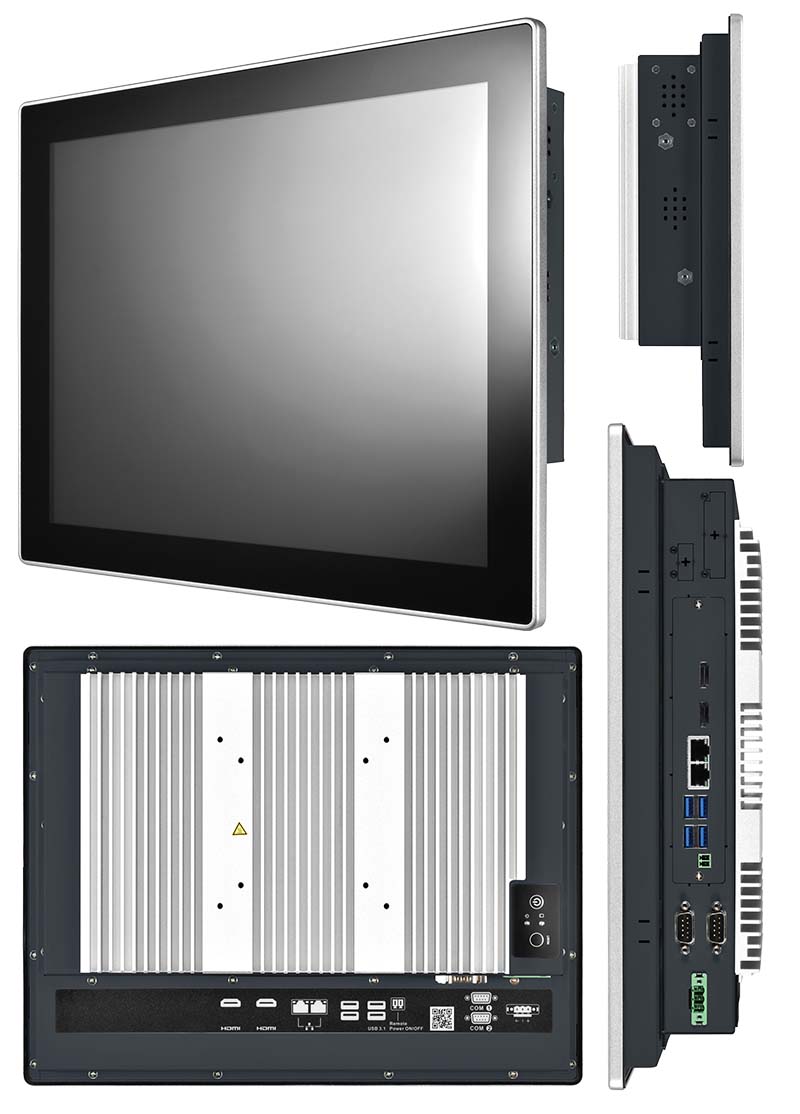

Mitac P150-11TGS-UP3i7 [Intel i7-1185G7E] 15" Panel PC (1024x768, IP65 Front, Fanless)

Mitac P150-11TGS-UP3i7 [Intel i7-1185G7E] 15" Panel PC (1024x768, IP65 Front, Fanless)
  • 1024x768 Touchscreen !
  • Fanless ! IP65 Front !
  • Intel 11th Gen Tiger Lake !
  • 2x LAN, 3x COM !

P150-11TGS is a 15 inch all in one panel pc system with Intel Tiger Lake based platform for power-efficiency and fanless condition. For different industrial touch application, it is also flexible to support either resistive touch or capacitive touch solution followed by IP65 protection rating in front.

All of these are aiming to provide the most stable and reliable product solution for different environmental or industrial HMI applications.

  • 15" TFT LCD with 70,000 hrs backlight lifetime
  • True-flat touchscreen with projected capacity
  • Front panel IP65-rated, fanless design
  • Integrated i7-1185G7E Processor


Share

1649.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :
LCD
Display Type 15" TFT-LCD
Max. Resolution 1024 x 768
Max. Colors 16.7M (8 bit/color)
Luminance 300 cd/m2
Viewing Angle 176°(H), 176°( V)
LED Backlight lifetime (Hours) 70,000
TOUCH SCREEN
Type P-CAP / resistive
Touch Screen True-flat 10 points / single point
SYSTEM
Processor i7-1185G7E
Chipset Intel® SoC integrated
System Memory 1 x 260-pin SO-DIMM / DDR4 3200 MHz
/ Max. 32GB (Non-ECC)
Ethernet Intel® I219-LM Giga LAN / Intel® I225-LM 2.5GbE LAN
I/O Port 1 x 3-pin Phoenix type terminal block DC input
2 x RJ45
1 x RS232
1 x 2-pin remote power on/off
1 x RS232 / 422 / 485
2 x HDMI 1.4
4 x USB 3.1 Gen 2
Watchdog Timer 1~255 steps by software program
Storage Disk Drive 1 x SATA 2.5” HDD / SSD bay
Expansion Slot Wireless: 1 x M.2 2230 E key (PCIeX1, USB2.0)
/ Storage/LTE/5G Slot: 1 x M.2 2280/2260/2242/3042/3052 B Key (USB2.0/*PCIeX1/SATAIII) *Not support M.2 M Key NVMe SSD
/ **5G card support is by BOM option. Please check with sales about the M.2 B Key 3052 5G card spec if you have any request
Stereo Speaker 2 x 3W
OS Support Windows® 11 64bit / Windows 10 64bit
POWER REQUIREMENT
Power Input DC-in 8~24V
Power Adapter AC to DC / DC19V / 3.4A / 65W adapter
MECHANICAL
Mounting VESA 75/100mm / Panel Mount
Dimension 360.4 x 283.4 x 81.7mm
Weight 5.0kg
ENVIRONMENTAL
Operating Temperature -20~60°C (-4 ~ 140°F)
Storage Temperature -20 ~ 70°C (-4 ~158°F)
Storage Humidity 10% ~ 90% @40°C non-condensing
Vibration Resistance Operating: 5Hz~500Hz / 2Grms / 3Axis (w/ SSD, according to IEC60068-2-64)
Shock Resistance Operating 10 G peak acceleration (11 ms duration) / follow IEC 60068-2-27
EMC CE / FCC Class B
Front Panel Protection IP65 Compliant
Packing List 1 x Quick Installation Guide / 1 x 3 pin Terminal Block Power Connector / US + EU Power Cord / 1 x Power Adapter (19V, 65W, DC Jack Type) / 1 x Panel PC / 1 x Screws kit / 1 x Mounting kit / 1 x 2 pin Terminal Block Male Connector
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Mitac Edge AI Guide Download (PDF)
