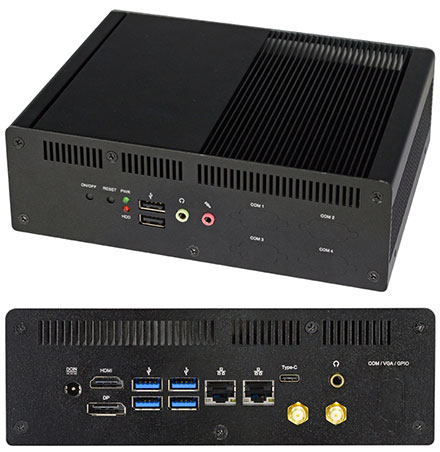

Jetway HBFDF835i-8265-F (Intel Whiskey Lake-U) [USB-C, 2x LAN, WLAN]

Jetway HBFDF835i-8265-F (Intel Whiskey Lake-U) [USB-C, 2x LAN, <b>WLAN</b>]
  • Whiskey Lake-U !
  • USB-C !
  • 4K Support !
  • WLAN !

  • Intel® Whiskey Lake-U Processor
  • 2* SO-DIMM DDR4-2400MHz up to 64GB
  • 2* USB2.0, 4* USB3.1, 1* USB Type-C, 1* HDMI, 1* DP, 2* RJ45
  • Support Max. 4K display resolution
  • DC-12V_60W FSP Adapter


Share

859.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:
MB Model – JNF835F-8365U (Default) (3.5” SBC)
– JNF835F-8265U (3.5” SBC)
Part No Non-Wifi M.2 ac WiFi card
– HBFDF835-8265-F
– HBFDF835-8365-F (Default) 		– HBFDF835I-8265-F
– HBFDF835I-8365-F
BIOS – AMI Flash ROM
CPU/Chipset – Intel® Whiskey Lake-U SoC Processor (TDP 15W)
Notes : When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.
Memory 2 * SO-DIMM slots DDR4-2400MHz up to 64GB
Storage – 1 * 2.5” SATA3 6Gb/s internal drive bay
– 1 * M.2 M-key (2242/2260/2280) Support PCIex4(NVMe) & SATA interface
Network – 2 * Intel® GbE (1* i219LM, 1* i211AT)
– 1 * M.2 E-key (2230) Support CNVi (for WiFi expansion)
Rear Panel I/O – 4 * USB 3.1
– 1 * USB 3.1(Gen.2) Type C (USB data transfer Only)
– 1 * HDMI 1.4 (Max. resolution:4096 x 2160@30Hz)
– 1 * DP (Max. resolution:4096 x 2304@60Hz)
– 2 * RJ45
– 1 * Line-out
– 1 * COM
– 2 * Antenna holes (optional)
– 1 * DC-in
Front Panel I/O – 1 * Power button, 1 * Reset button
– 1 * Power LED, 1 * HDD LED
– 2 * USB 2.0
– 1 * Line-out, 1 * MIC-in
– 4 * COM
Power Source – DC Adapter / AC 90~240V input /DC12V-5A-60W
– M/B: DC 9~24V input
Compliance – CE, FCC, LVD, RoHS
Temperature – Operating Temperature: -20 ~ 60° C (Under the condition of using M.2 interface SSD)
– Operating Temperature: 0 ~ 50° C (Under the condition of using 2.5” SATA HDD)
(The test environment is closed and windless)
– Storage Temperature: -20 ~ 70° C
– Humidity: Between 40% and 60%, non-condensing
Dimensions – 193 (W) x 142.4 (D) x 62 (H) mm
Packing – Net Weight: 2.2KG
– Gross Weight: 3.2KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm
OS Support – Windows 10, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
Datasheet Download (PDF)
