Intel D510MO (with integrated Atom 2x 1.66Ghz CPU) [FANLESS] (Remnant)

PRODUCT IS CURRENTLY NOT AVAILABLE !

Intel D510MO (with integrated Atom 2x 1.66Ghz CPU) [<b>FANLESS</b>] (Remnant)

3D 360° View

CPU	Intel Atom D510 2x1.66Ghz
Graphics	Intel GMA 3150
Formfactor	ITX (17x17cm)
RAM	2x DDR-II 667/800
Audio	Realtek HD Codec
Base	Intel ITX

USB	8x USB 2.0
Firewire	--
IDE/SATA	2x SATA
LAN	1x 10/100/1000 Mbit
Parallel	1x
Serial	2x

no	TV-Out
yes	PCI
yes	Mini-PCI
no	IDE
no	DVI
no	800x480 Resolution

yes	Passive-Cooling
no	PCI-Express
no	PCMCIA
yes	SATA
no	CPU changeable
no	Compact Flash

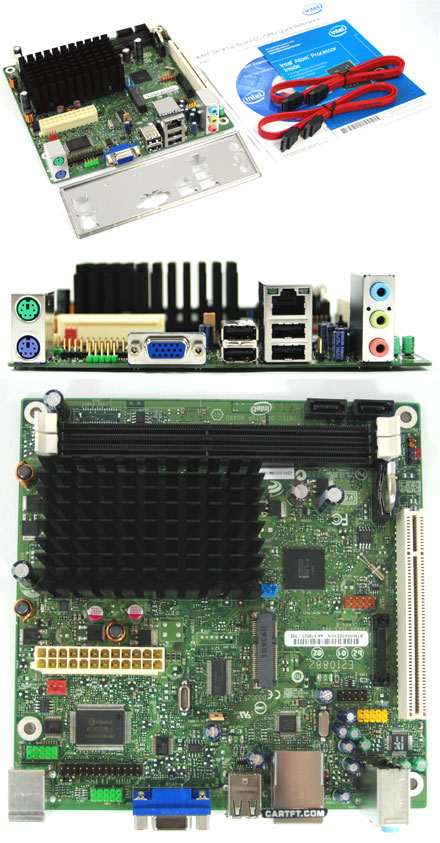

Remnant with I/O shield, 2x SATA cable, driver CD, manual. 2 years warranty.

The D410PT as well as the D510MO offer passive cooling and hide on the one hand a -single Core Atom processor (D410) and on the other hand a Dual Core Atom processor (D510 – also used in numerous new netbooks) of the newest generation.

In the area of power consumption (~30 watts) the new mainboards range within the low, classic Intel Atom level. The major advantage of the new mainboard ist he possibility to utilize the 24 pin ATX jack, which makes the use of an additional P4 connector unnecessary.

As with the other mainboard generations, Intel again, focuses on the extension possibilities. Therefore, both mainboards offer a willingly utilized PCI slot, and the D510MO additionally offers a Mini PCIexpress socket and a LPT extension slot. With these possibilities up their sleeve, with minimum effort they offer variable fields of application.

Note : This mainboard does not fit into Voom-2, because of the big heatsink.

Name	D510MO
Form Factor	Mini-ITX Mainboard
CPU	Intel Atom D510 @ 2x 1.66GHz (Silverthorne 45nm)
Chipset	Intel NM10 Express
L2 Cache	2x 512kb
Graphics	Intel GMA 3150
Memory	2x DDR2 667/800 RAM (bis zu 4GB)
Power	24 Pin ATX
Connectors (rear)	- 1x PS/2 - 1x D-SUB15 (VGA) - 4x USB 2.0 - 1x LAN 10/100/1000 MBit - 3x Sound (Line Out, Line In, Microphone)
Audio	Realtek High Definition Audio
Connectors (internal)	- PCI - Mini-PCI Express - Audio - 4x USB - 2x SATA - 2x RS232 - 1x LPT
Included	- D510MO Mainboard (with 2x 1.66Ghz Atom CPU) - I/O ATX rear plate - 2x SATA cable - Quickstart-Guide - Drivers CD

Data sheet	Download (PDF)
Data sheet	Print view
Review [DE]	Download (PDF)
Review [EN]	Download (PDF)

Please login for creating product ratings.

Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: Average rating, based on 26 ratings

from info@malstoff.de am 08.08.2011 |

| See all my comments

from klausrosch am 01.08.2011 | See all my comments

Angenehm lautlos. Erstaunlich leistungsfähiges Board für den niedrigen Stromverbrauch. Leider hat es keinen Speed-Step was bedeutet dass der Stromverbrauch unter Vollast und bei idle sich nur minimal ändert. Immer etwa 3A bei 12V. Einige ICs auf der Platine werden sehr heiß. Von 3 dieser Boards ging mir eines nach 10 Monaten kaputt.

from LabDevil am 01.04.2011 |

Perfektes Board auch für Automatisierungslösungen. Beim Booten über den internen USB SSD-Card Port (Z-U130) sollte unbedingt das BIOS auf die neuste Version aktualisiert werden, da es sonst zu Boot Problemen kommen kann.

from -Frederic- am 21.10.2010 |

| See all my comments

Unglaublich, was man heute für kleiens Geld an Hardware bekommt.
Für das Auto ein absolut außreichendes System: Läuft perfekt, hat mehr als genug Leistung für alle Anwendungen im Auto, passt in nahezu alle Gehäuse und hat alle Anschlüsse, die man braucht.
Kann dieses System nur empfehlen, besonders für diesen Preis.

from microspino am 04.10.2010 | See all my comments

Good and cheap motherboard. It could have got 5 stars if It had more SATA ports. Only two is a bit limiting.
