FleetPC-1 Car-PC Barebone (with Intel Celeron-M 1.0Ghz, 1GB RAM, Autostart-Controller, Car-Adapter) *new*

PRODUCT IS CURRENTLY NOT AVAILABLE !
FleetPC-1 Car-PC Barebone (with Intel Celeron-M 1.0Ghz, 1GB RAM, Autostart-Controller, Car-Adapter) *new*
  • Intel Celeron-M 1.0 Ghz !
  • Auto Power On/Off !
  • Multiple Boot options !
  • 6x USB, 2x RS232 !

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V). Based on ignition plus, the PC will start and shutdown. The PC is offering several boot possibilities due to the internal connectors : 2.5" HDD or SSD, CompactFlash or USB.

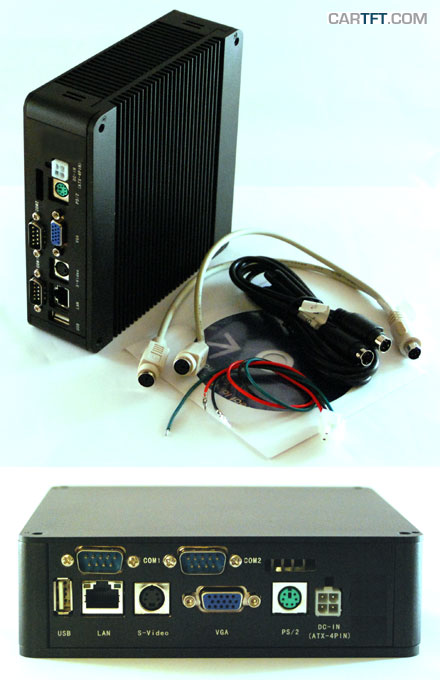

Inner view :


Share

RAM :

SSD (2.5"):

Build/Install:
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Assembling options
CPU Intel Celeron-M 1.0Ghz (integrated) [Fanless cooling !]
Internal drive possibilities - 1x 2.5" HDD/SSD
- 2x USB 2.0
- 1x CompactFlash
RAM 1x SO-DDR-II RAM 1024MB (integrated)
LAN Realtek RTL8139DL (10/100 Mbit, WOL, PXE)
Audio AC97 Codec
Graphics up to 1600x1200@85Hz or 2048x1536@75Hz
BIOS - 4Mb Award BIOS
- Plug-and-play (PNP) support
- ACPI
Power 9-16VDC (12V)
External connectors - 2x RS232 (COM1, COM2)
- 4x USB 2.0
- 1x MIC-In
- 1x Line-Out
- 1x RJ-45 LAN
- 1x PS/2 (splits up to 2x PS/2)
- 1x S-Video TV-Out
- 1x VGA (D-SUB15)
- 1x Power connector (12V, Ignition 12V, GND)
Size(mm) [W x L x H] 155 x 152 x 51

Scope of supply - FleetPC-1
  - Driver CD
  - PS/2 adapter cable
  - S-Video cable
  - Power connector cable
