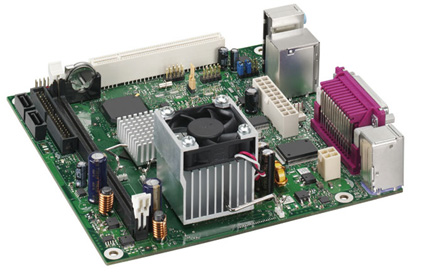

Intel D201GLY2A (with integrated Celeron 1.2Ghz CPU)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Intel D201GLY2<b>A</b> (with integrated Celeron 1.2Ghz CPU)
  • Intel Rapid BIOS Boot
  • DDR-II RAM
  • 1.2Ghz CPU
  • SATA !

Note : Mainboard is like Intel D201GLY2, but with fan !

The Intel® Desktop Board D201GLY2A is an innovative solution for the sub-value market segment. With an Intel® Celeron® processor and graphics integrated on the board, this board enables easy system integration and helps you to achieve a lower system cost. This board has 10/100 LAN, support up to six Hi-Speed USB 2.0 ports and 2 SATA (1.5 GB/s), providing both connectivity and ease of use for your computing needs such as email and Internet access, instant messaging and Voice Over IP (VoIP).

The Intel Desktop Board D201GLY2A is built in smaller uATX-Compatible form factor providing lower power consump
[more]

Share

34.95 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

4 von 5 Sternen
26 ratings

Add to cart
Compare
CPU Intel Celeron 220 1.2Ghz
Graphics SiS Mirage
Formfactor ITX (17x17cm)
RAM 1x DDR-II 400/533/677
Audio ADI* AD1888 audio codec
Base Intel ITX
USB 6x USB 2.0
Firewire --
IDE/SATA 1x IDE, 2x SATA
LAN 1x 10/100
Parallel 1x
Serial 1x
no TV-Out
yes PCI
no Mini-PCI
yes IDE
no DVI
no 800x480 Resolution
no Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
no CPU changeable
no Compact Flash

Note : Mainboard is like Intel D201GLY2, but with fan !

The Intel® Desktop Board D201GLY2A is an innovative solution for the sub-value market segment. With an Intel® Celeron® processor and graphics integrated on the board, this board enables easy system integration and helps you to achieve a lower system cost. This board has 10/100 LAN, support up to six Hi-Speed USB 2.0 ports and 2 SATA (1.5 GB/s), providing both connectivity and ease of use for your computing needs such as email and Internet access, instant messaging and Voice Over IP (VoIP).

The Intel Desktop Board D201GLY2A is built in smaller uATX-Compatible form factor providing lower power consumption and passive thermal solution.




Note : The CPU heatsink has a height of 45mm. Thats why it does not fit into every enclosure.
Compatible with :
- Voom
- Voom-2
- M300(-LCD)
- Travla C137
Not compatible with :
- M200(-LCD) (needs replacement heatsink)
- Morex enclosures (needs replacement heatsink)


PicoPSU & M3-ATX : You can only directly stick in the standard picoPSU-120 power supply. Other picoPSU models and M3-ATX can only be connected with an additional ATX extension cable.


For Operating you need a P4 adapter or a PSU with P4 connector

Form Factor uATX (6.75 inches by 6.75 inches [171.45 millimeters by 171.45 millimeters]) (ITX compatible)
Processor Integrated Intel® Celeron® 220 processor (1.2 Ghz) with a 533 MHz system bus
Memory One 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 677/533/400 MHz DIMMs
Support for up to 1 GB of system memory
Chipset SiS* SiS662 Northbridge
SiS* SiS964L Southbridge
Audio ADI* AD1888 audio codec
Video Integrated SiS Mirage* 1 graphic engine
I/O Control Winbond* W83627DHG-B based Legacy I/O controller for hardware management, serial, parallel, and PS/2* ports
LAN Support 10/100 Mbits/sec LAN subsystem using the Broadcom* LAN adapter device
Peripheral Interfaces Six USB 2.0 ports
One parallel ATA IDE interface with UDMA 33, ATA-66/100/133 support
Two SATA ports
One serial port
One parallel port
PS/2* keyboard and mouse ports
Expansion Capabilities One PCI Conventional* bus connector
Data sheet Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 26 ratings
4 von 5 Sternen from BAUM Retec am 09.09.2014 | | See all my comments
1 von 5 Sternen from xhaon am 23.03.2010 | See all my comments

Ancient motherboard, with XP the motherboard isn´t fast....

2 von 5 Sternen from unleaded am 26.02.2010

Good motherboard

5 von 5 Sternen from webbi1991 am 20.08.2009 | See all my comments

Ich habe mir dieses mainboard vor geraumer Zeit gekauft, damals hatte es jedoch noch keinen SATA Anschluss. Trotzdem bin ich bis heute sehr zufrieden damit. Ich habe den Lüfter für die CPU mit einer Lüftersteuerung etwas runtergeregelt, sodass man fast nichts mehr hören kann.

3 von 5 Sternen from Virtual_gs am 23.06.2009
