BACK : VGA Touchscreen (Premium)

CTF700-H V2 - VGA 7" TFT - Touchscreen USB - Autodimmer - IR Remote - Audio (600nits , TMR-Technology) CTF700-H V2 - VGA 7" TFT - Touchscreen USB - Autodimmer - IR Remote - Audio (600nits , TMR-Technology)
Stock situation : in stock

High brightness !
One-cable-4-all !
TMR !
600 nits !

Data sheet Print view


. 379.00 EUR . incl.19% VAT plus shipping

CTF700-H V2 - VGA 7" TFT - Touchscreen USB - Autodimmer - IR Remote - Audio (600nits , TMR-Technology)

Front view

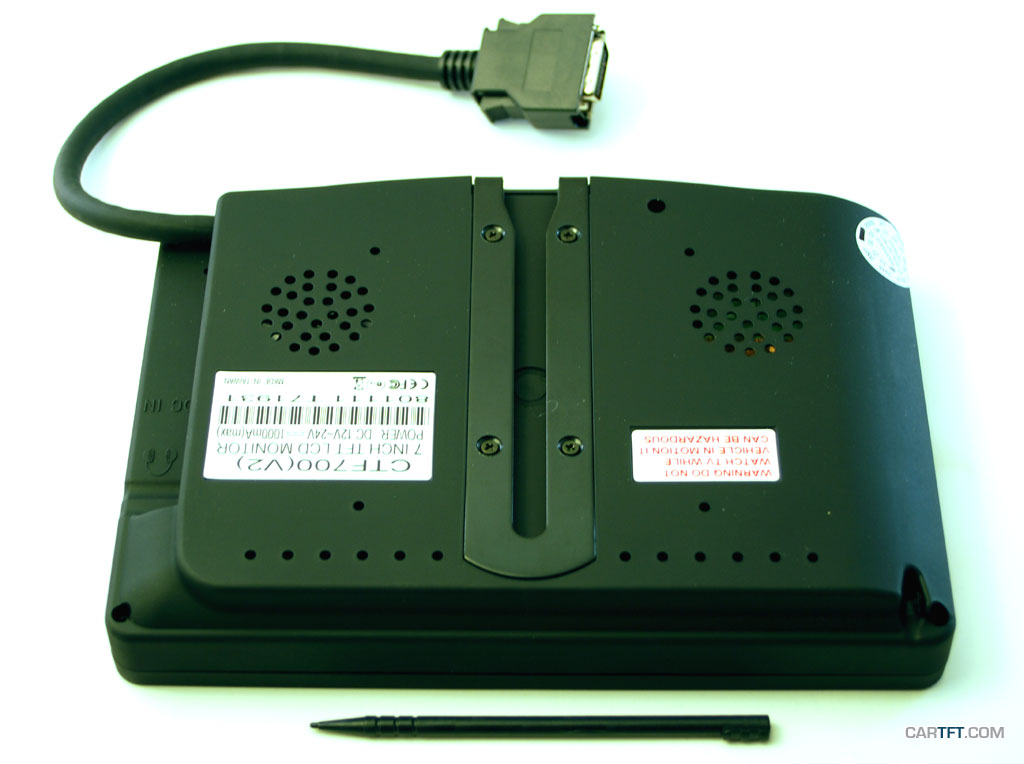

Rear view

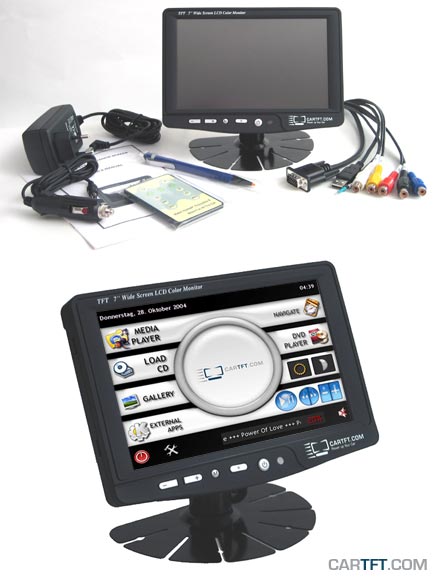

Complete view

LCD Size

Aspect ratio Height to Width

Capable PC-VGA resolutions

Physical TFT resolution (=native resolution)

Amount of showable pixel modes (RGB(=3)x native resolution)

Maximum backlight in nits or cd/m²

VGA connector

Amount of video inputs and standard

Amount of audio inputs

Touchscreen connector

Color of display housing

Power input range (12VDC=car, 24VDC=lorry)

Power consumption

Housing dimensions

Visible LCD area

Certifications

Weight (only display)

Adjustable LCD backlight

Display can turn on/off automatically, depending on signal status

Picture-in-picture capability

Infrared remote control unit for display

Incl. headrest mounting unit

Incl. touchscreen control pencil

Earphone output

Adjustable aspect ratio in video mode (4:3 or 16:9)

Mirrorable video picture (video-mode)

Input for rear camera

Displays are tested for dead pixels prior to shipping.

.TFT-Display

Front		Rear

Full

.Specifications

LCD Size	7"	Aspect Ratio	16:9

VGA Resolutions	640x480-1024x768	Physikal resolution	800x480

Dot resolution	2400x480	Brightness	600

VGA Input	D-SUB 15	Video Input	3x PAL/NTSC (RCA)

Audio Input	2x RCA (Stereo)	Touchscreen	USB

Case color	black	Power Input	12-24VDC

Power Consumption	9W	Case size	184 x 129 x 32 mm

Visible area	154 x 93 mm	Certificates	CE, E1

Weight	0	Bauform	On-Dash

Warranty months	24

.Features

Adjustable backlight		Auto Power-On

Picture In Picture		IR Remote

Headrest mount		TS pencil

Earphone		Adjustable video aspect

Mirrorable video		Reverse camera input

Additional informations :

New in V2 (17.03.2009):
- Touchscreen-pencil integrated in rear enclosure
- Improved internal shielding
- Improved internal design (higher reliability, lower power consumption)

The CTF700-H delivers an impressive 600 cd/m2 light output – a light level that places it at the very top end of the market in terms of brightness. This light output is achieved with no increase in power consumption over previous models. The model is an active matrix transmissive TFT that offer robust industrial quality and performance with a wide operating temperature range of -30°C to 80°C.

The Display works on basis of the combination of transmissive and Micro-Reflective-Technology (=TMR). TMR connects the advantages of the conventional technology, where the LCD is lighted from the rearside with the advantages of the reflektive TFT-LCD-technology. This way the image quality is improved under direct sunlight.

Unlike a transflective display, TMR is more transmissive than reflective, with some reflective properties. The advantage is better color saturation than a true transflective technology.

The new CTF-700-H TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The device has integrated Stereo-speakers, a rear camera input and the dimmer button in the front will enable perfect viewing pleasure also during the night.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTF-700-H can be used with any PC/MAC with VGA- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..

Spezifications
Screen size	7" digital
Aspect Ratio	16:9 wide TFT screen
Dot Resolution	2400x480= 1,152,000 dots
Physical Resolution	800x480
Supported Resolutions	640x480-1024x768
Color configuration	RGB stripe
Power input	DC 11-24V
Power consumption	max. 8W
Video system	3x Video inputs (PAL/NTSC) 1x VGA input
Dimensions	Display Case : 184x129x32 mm Display : 154 x 93 mm
Video input signal	1.0Vp-p, composite video
Brightness	600 cd/m²
Contrast	450:1
Vibration	IEC68-2-6
Operating Temperature	-30° to 80°C
Features	Full function OSD control (englisch)
	Built-in Stereo-speakers
	Earphone-Output (rear side)
	Automatic switching to rear camera (by signal detection on AV3)
	Auto Power On/Off
	Touchscreen-pencil integrated in rear enclosure
	Autodimmer
What is included ?	- 7" VGA Touchscreen TFT with Video/Audio-support
	- Infrared Remote Control
	- Car dash mounting bracket
	- Touchscreen pencil
	- VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length
	- Power Adapter f. EU 230V
	- Cigarette Lighter Adapter
	- Touchscreen Driver-CD
	- Manual

Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz

Sunlight-readable-test with CTF700-SH in Death Valley (USA)

BACK

.Support files

			800x480 Driver (Windows 7)

.Customer ratings from CarTFT.com
Product-Link

jhobrlant | 21-04-2011 |

Guter Monitor. Gut ablesbar, auch in der Sonne. Das 3m-Kabel reicht wahrschainlich zum Beifahrersitz. Zum Kofferraum braucht es aber 5m. Ein Umtausch wäre gut, oder dass man die Länge bei der Bestellu More

meisterlampen | 06-04-2011 |

Super Monitor, sehr gute Helligkeit. Funktioniert super unter windows XP mit sehr hoher genauigkeit. Alle Anschluesse sind über das Kabel zum Monitor geführt, sogar der Strom und Sound geht hierüber b More

gsflorian | 03-03-2011 |

Hello! I have this touchscreen tft monitor for four years now, and it is still workin well. It changed three cars, different mounting positions. This monitor even stood on my desk when my monitor burn More
