MM400 -<b>V5</b>- VGA 7" TFT - Touchscreen USB - PAL/NTSC - IR Remote - Audio MM400 -V5- VGA 7" TFT - Touchscreen USB - PAL/NTSC - IR Remote - Audio
Stock situation : in stock

High brightness !
One-cable-4-all !
Slim design !

Data sheet Print view


. 219.00 EUR . incl.19% VAT plus shipping

MM400 -V5- VGA 7" TFT - Touchscreen USB - PAL/NTSC - IR Remote - Audio

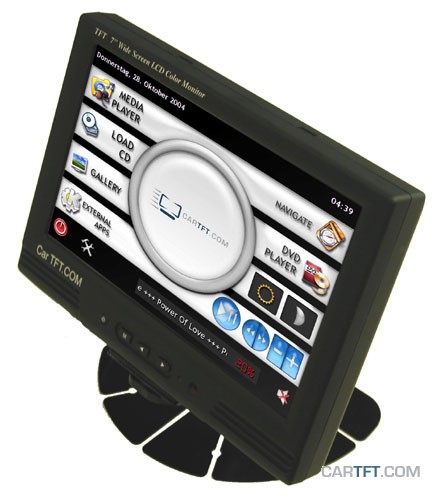

Front view

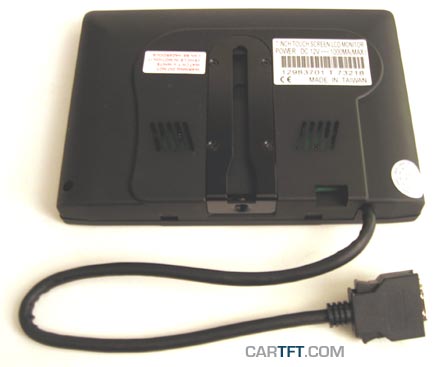

Rear view

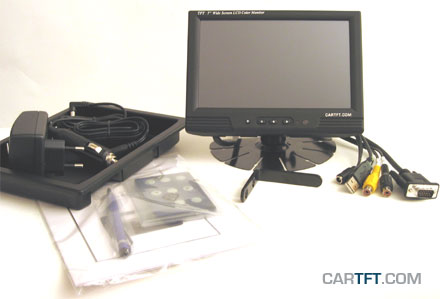

Complete view

LCD Size

Aspect ratio Height to Width

Capable PC-VGA resolutions

Physical TFT resolution (=native resolution)

Amount of showable pixel modes (RGB(=3)x native resolution)

Maximum backlight in nits or cd/m²

VGA connector

Amount of video inputs and standard

Amount of audio inputs

Touchscreen connector

Color of display housing

Power input range (12VDC=car, 24VDC=lorry)

Power consumption

Housing dimensions

Visible LCD area

Certifications

Weight (only display)

Adjustable LCD backlight

Display can turn on/off automatically, depending on signal status

Picture-in-picture capability

Infrared remote control unit for display

Incl. headrest mounting unit

Incl. touchscreen control pencil

Earphone output

Adjustable aspect ratio in video mode (4:3 or 16:9)

Mirrorable video picture (video-mode)

Input for rear camera

Displays are tested for dead pixels prior to shipping.

.TFT-Display

Front		Rear

Full

.Specifications

LCD Size	7"	Aspect Ratio	16:9

VGA Resolutions	640x480-1920x1200	Physikal resolution	800x480

Dot resolution	2400x480	Brightness	400

VGA Input	D-SUB 15	Video Input	3x PAL/NTSC (RCA)

Audio Input	2x RCA	Touchscreen	USB

Case color	black	Power Input	12VDC

Power Consumption	9W	Case size	178 x 130 x 27 mm

Visible area	154 x 93 mm	Certificates	CE, E1

Weight	0	Bauform	On-Dash

Warranty months	24

.Features

Adjustable backlight		Auto Power-On

Picture In Picture		IR Remote

Headrest mount		TS pencil

Earphone		Adjustable video aspect

Mirrorable video		Reverse camera input

Additional informations :

New in V5 (Juni 2010):
- Improved internal design (higher reliability, lower power consumption)

New in V3 (January 2009):
- Touchscreen-pencil integrated in rear enclosure
- Improved internal shielding
- Improved internal design (higher reliability, lower power consumption)

A bargain display, but with many features :
- Long All-In-One connector-cable
- High brightness (400 nits)
- Many accessoiries
- Rear camera input

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..

Spezifications
Screen size	7" digital
Aspect Ratio	16:9 wide TFT screen
Dot Resolution	2400x480= 1,152,000 dots
Physical Resolution	800x480
Supported Resolutions	640x480-1920x1200 (also eg. 1366x768)
Color configuration	RGB stripe
Power input	DC 12V
Power consumption	max. 8W
Video system	3x Video inputs (PAL/NTSC) 1x VGA input
Dimensions	Display Case : 178x130x27 mm Display : 154 x 93 mm Headrest Mounting : 203x151x27 mm
Video input signal	1.0Vp-p, composite video
Brightness	400 cd/m²
Contrast	350:1
Vibration	IEC68-2-6
Operating Temperature	0° to 70°C
Features	Auto Power On/Off
	Touchscreen-pencil integrated in rear enclosure
	Full function OSD control (englisch)
	Built-in speakers
	Automatic switching to rear camera (by signal detection on AV3)

What is included ?	- 7" VGA Touchscreen TFT with Video-support
	- Infrared Remote Control
	- Car dash mounting bracket
	- Head rest shroud
	- VGA/Video/Audio/Power/Touchscreen-cable (all-in-one !) 2,5 meters length
	- Power Adapter f. EU 230V
	- Cigarette Lighter Adapter
	- Touchscreen Driver-CD
	- Manual

Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz
